Industrial automation depends on reliable data exchange. Factories, utilities, and infrastructure systems use many field devices. These include sensors, meters, controllers, and drives. Most of these devices still rely on serial communication.

Industry surveys show that over 60% of industrial equipment uses RS-485 based communication. Another report states that Modbus remains one of the most used industrial protocols worldwide. It appears in energy, manufacturing, and building automation systems.

Data reliability remains a challenge. Electrical noise, long cable runs, and protocol limitations affect signal quality. Performance issues also appear when systems scale.

An RS-485 Modbus Gateway addresses these challenges. It acts as a bridge between serial Modbus devices and modern networks. It improves communication stability and system performance.

Understanding RS-485 and Modbus Basics

What RS-485 Communication Means

RS-485 is a serial communication standard. It supports multi-drop networks. Many devices share the same bus.

Key RS-485 characteristics include:

• Differential signaling
• Long-distance support up to 1200 meters
• Noise resistance
• Multi-device communication

These features suit harsh industrial environments.

What Modbus Protocol Does

Modbus is a simple communication protocol. It follows a master-slave or client-server model.

Key Modbus features include:

• Open protocol design
• Simple register-based data model
• Low processing overhead

Modbus works over RS-485 using Modbus RTU or Modbus ASCII formats.

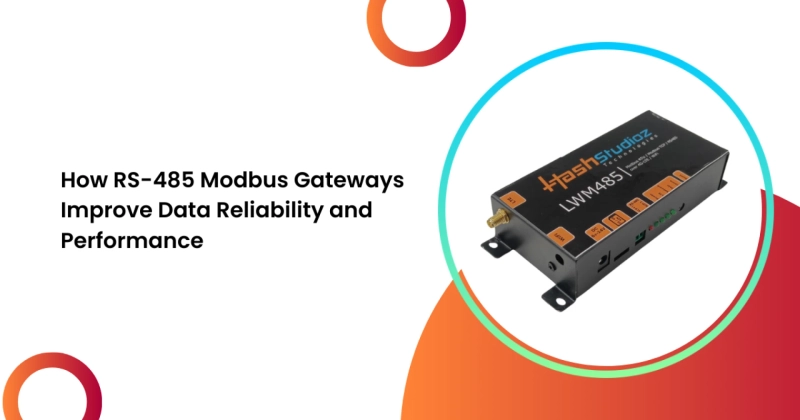

What Is an RS-485 Modbus Gateway

1. Core Function of an RS-485 Modbus Gateway

An RS-485 Modbus Gateway connects serial Modbus devices to other networks. These networks include Ethernet, TCP/IP, and cloud platforms.

The gateway performs:

• Protocol conversion
• Data buffering
• Message forwarding

It allows legacy devices to communicate with modern systems.

2. Typical Gateway Interfaces

Most gateways support multiple interfaces.

Common interfaces include:

• RS-485 serial ports
• Ethernet ports
• TCP/IP stacks

Some models also support wireless options.

Why Data Reliability Matters in Industrial Systems

1. Impact of Data Errors

Data errors affect automation accuracy. Incorrect values lead to wrong decisions.

Common issues include:

• Sensor value corruption
• Missed alarms
• Incorrect control actions

Reliable data flow prevents these problems.

2. RS-485 Network Challenges

RS-485 networks face several issues.

These include:

• Signal reflections
• Electrical noise
• Improper termination
• Address conflicts

Gateways help reduce these risks.

How RS-485 Modbus Gateways Improve Data Reliability

1. Signal Isolation and Noise Protection

Many gateways include electrical isolation. Isolation separates field devices from network systems.

Benefits include:

• Reduced ground loops
• Improved surge protection
• Better noise resistance

This protects both devices and data.

2. Data Buffering and Error Handling

Gateways buffer incoming data. They handle retries and timeouts.

This improves reliability by:

• Reducing data loss
• Managing slow devices
• Handling temporary faults

Buffered communication improves consistency.

3. Address Management and Validation

Gateways manage Modbus device addresses. They validate requests before forwarding.

This prevents:

• Address conflicts
• Invalid data requests
• Communication collisions

Controlled access improves network stability.

Protocol Conversion and Data Mapping

1. Modbus RTU to Modbus TCP Conversion

A common gateway task is protocol conversion. Many systems use Modbus TCP.

The gateway:

• Converts serial frames to TCP packets
• Preserves register structure
• Maintains data integrity

This allows easy system integration.

2. Register Mapping and Scaling

Gateways map registers to network addresses. They also apply scaling rules.

Examples include:

• Unit conversion
• Data type correction
• Address remapping

This ensures accurate data representation.

Improving System Scalability

1. Supporting Large Device Networks

RS-485 networks support many devices. Gateways help manage scale.

They:

• Group devices logically
• Reduce network traffic
• Maintain response consistency

This supports system growth.

2. Multi-Gateway Architectures

Large installations use multiple gateways.

Benefits include:

• Distributed load handling
• Fault isolation
• Better performance control

Each gateway manages a defined device group.

Reliability in Harsh Industrial Environments

1. Temperature and Electrical Stability

Industrial gateways support wide temperature ranges. They handle unstable power conditions.

Features include:

• Industrial-grade components
• Power surge protection
• Stable operation under load

This improves uptime.

2. Watchdog and Fail-Safe Features

Many gateways include watchdog timers. These detect internal faults.

Actions include:

• Automatic restart
• Safe communication recovery
• Error logging

These features prevent long outages.

Use Cases Across Industries

1. Manufacturing Automation

Factories use RS-485 Modbus gateways to connect PLCs and sensors.

Common applications include:

• Production monitoring
• Equipment status reporting
• Quality data collection

Gateways ensure stable data flow.

2. Energy and Utilities

Power meters often use Modbus RTU. Gateways connect them to monitoring systems.

Benefits include:

• Accurate energy data
• Remote access
• Centralized reporting

Reliable data supports billing accuracy.

3. Building Management Systems

HVAC and lighting controllers use RS-485 communication.

Gateways enable:

• Central control
• Performance monitoring
• Alarm reporting

This improves building efficiency.

Security Considerations

1. Network Segmentation

Gateways act as controlled access points. They separate field networks from IT networks. This limits unauthorised access, broadcast traffic exposure, and security risks. Thus, controlled gateways improve system safety.

2. Data Access

Some gateways support access rules. They allow read-only or write limits. This prevents accidental configuration changes and unauthorised control commands. Access control improves reliability.

Deployment and Configuration Best Practices

1. Proper RS-485 Wiring

Correct wiring improves gateway performance.

Key practices include:

• Correct termination resistors
• Proper grounding
• Shielded cables

Good wiring reduces errors.

2. Address Planning

Each Modbus device needs a unique address.

Planning avoids:

• Address conflicts
• Communication failures

Gateways rely on proper addressing.

3. Performance Testing

Testing ensures stable operation.

Tests include:

• Load testing
• Response time checks
• Error monitoring

Testing validates performance gains.

Maintenance and diagnostics

1. Monitoring and Troubleshooting

RS-485 Modbus gateways usually include simple LEDs and basic logging. At a glance, these show whether communication is normal or if something is wrong. When a device drops off the network or data updates slow down, these indicators give technicians a starting point. Instead of checking every cable or device, they can narrow the issue quickly. That saves time and helps bring the system back online faster.

2. Firmware Updates and Long-Term Care

Firmware updates are released from time to time by gateway vendors. Some updates fix small bugs. Others improve performance or compatibility. Keeping firmware up to date helps avoid repeated issues and keeps communication stable over long periods. In industrial systems that run continuously, this kind of routine maintenance plays a big role in overall reliability.

Future Role of RS-485 Modbus Gateways

Industrial systems continue to evolve. Yet legacy devices remain common.

Analysts estimate that serial communication will remain active in over 40% of industrial systems through 2030.

RS-485 Modbus gateways will continue to:

• Bridge old and new systems
• Improve data reliability
• Support system modernization

They remain critical integration components.

Conclusion

Reliable data exchange supports effective automation. RS-485 and Modbus remain widely used in industry. These technologies face performance and reliability challenges as systems grow.

An RS-485 Modbus Gateway improves communication stability. It reduces errors, manages load, and improves response time. Gateways also support protocol conversion and scalability.

From a technical view, gateways play a central role. They protect data integrity and improve system performance. Industries rely on them to connect legacy devices with modern networks.

RS-485 Modbus gateways remain a dependable solution for industrial communication needs.
