MSS SP 75 WPHY 70 Pipe Fittings – High Strength Pipeline Solutions

MSS SP 75 WPHY 70 pipe fittings are high-strength carbon steel fittings designed for critical pipeline applications where durability, pressure resistance, and mechanical performance are essential. These fittings are widely used in industries such as oil & gas, petrochemical, power generation, and offshore engineering due to their ability to withstand extreme conditions.

The MSS SP 75 specification is developed for high-test, wrought butt-welding fittings that are manufactured from carbon and low-alloy steel. These fittings are specifically intended for high-pressure transmission systems, including pipelines, compressor stations, and distribution networks.


What is MSS SP 75 WPHY 70?

The term WPHY 70 stands for Wrought Pipe High Yield 70, indicating a minimum yield strength of 70,000 psi (483 MPa). This makes one of the strongest grades within the MSS SP 75 standard.

These fittings are engineered to match high-strength pipeline materials such as API 5L X70, ensuring compatibility and performance consistency in demanding applications.


Key Features of MSS SP 75 WPHY 70 Pipe Fittings

MSS SP 75 WPHY 70 pipe fittings offer several advantages:

  • High yield strength for heavy-duty applications
  • Excellent tensile strength and toughness
  • Superior weldability and fabrication properties
  • Resistance to stress, impact, and deformation
  • Suitable for high-pressure and high-temperature services
  • Leak-proof and dimensionally accurate design

These features make them ideal for long-distance pipelines and critical fluid transport systems.


Specifications of MSS SP 75 WPHY 70 Pipe Fittings

The mss sp 75 wphy 70 pipe fittings are manufactured according to strict international standards to ensure reliability and performance.

  • Standard: MSS SP 75, ASME B16.9, ASME B16.28
  • Material: High-yield carbon steel
  • Grade: WPHY 70
  • Size Range: ½ inch to 48 inches
  • Wall Thickness: SCH 10 to SCH XXS
  • Manufacturing Type: Seamless, welded, fabricated
  • Ends: Beveled, threaded, or flanged
  • Testing: Hydrostatic, ultrasonic, radiographic, and PMI testing

These fittings are also produced with high precision and undergo strict quality checks to meet industrial requirements.


Chemical Composition

The chemical composition of MSS SP 75 WPHY 70 ensures strength and durability:

  • Carbon: up to 0.26%
  • Manganese: 1.15–1.60%
  • Phosphorus: max 0.035%
  • Sulfur: max 0.035%
  • Silicon: 0.13–0.37%
  • Micro-alloying elements: Vanadium, Niobium, Titanium

These elements enhance the mechanical properties and resistance to corrosion and stress.


Mechanical Properties

The superior mechanical properties make mss sp 75 wphy 70 pipe fittings suitable for demanding environments:

  • Yield Strength: 483 MPa (70,000 psi)
  • Tensile Strength: 565 MPa minimum
  • Elongation: Minimum 21%
  • Hardness: Up to 235 HB

These properties ensure long service life and resistance to mechanical failure under pressure.

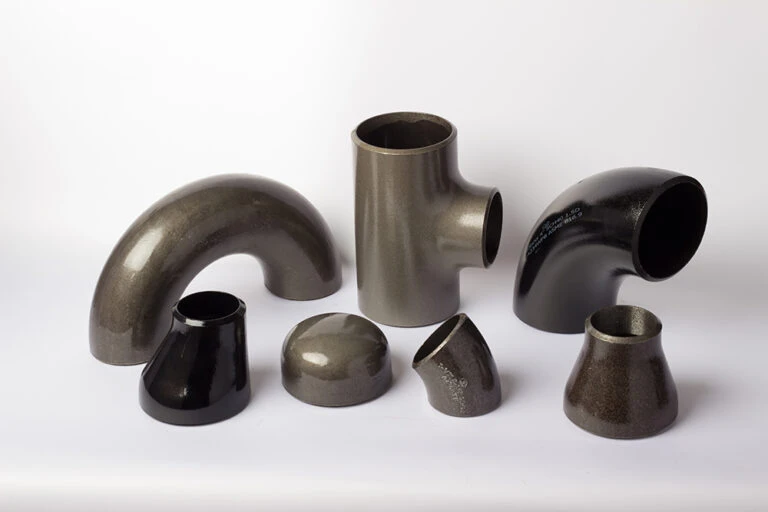

Types of MSS SP 75 WPHY 70 Pipe Fittings

MSS SP 75 WPHY 70 fittings are available in a wide variety of configurations to suit different piping systems:

  • Elbows (45°, 90°, 180° – long and short radius)
  • Tees (equal and reducing)
  • Reducers (concentric and eccentric)
  • Caps and stub ends
  • Cross fittings and laterals

These fittings are designed to provide smooth flow and efficient connection in pipeline systems.


Manufacturing Process

The manufacturing of mss sp 75 wphy 70 pipe fittings involves advanced processes such as:

  • Forging and hot forming
  • Rolling and extrusion
  • Welding and fabrication
  • Heat treatment (normalizing, quenching, tempering)

These processes improve the strength, toughness, and microstructure of the fittings.


Applications of MSS SP 75 WPHY 70 Pipe Fittings

Due to their high strength and reliability, these fittings are widely used in:

  • Oil and gas transmission pipelines
  • Petrochemical and refinery plants
  • Offshore and onshore drilling operations
  • Power generation facilities
  • Chemical processing industries
  • High-pressure steam and water pipelines

Their ability to handle extreme pressure and temperature makes them essential in critical infrastructure projects.


Corrosion and Heat Resistance

MSS SP 75 WPHY 70 pipe fittings provide good resistance to corrosion in industrial environments. For enhanced durability, protective coatings such as epoxy, galvanization, or anti-rust coatings are applied.

These fittings can operate at temperatures up to 315°C (600°F) without losing their mechanical strength, making them suitable for high-temperature applications.


Equivalent Grades

MSS SP 75 WPHY 70 is equivalent to several international standards:

  • ASTM A860 WPHY 70
  • ASME SA860 WPHY 70
  • API 5L X70
  • EN P500QL2

This equivalency ensures global compatibility and ease of sourcing.


Conclusion

MSS SP 75 WPHY 70 pipe fittings are a reliable and high-performance solution for modern pipeline systems. With their exceptional strength, durability, and resistance to harsh conditions, they play a crucial role in industries that demand safe and efficient fluid transportation.

Manufactured to strict standards and available in various types and sizes, these fittings ensure long-lasting performance in high-pressure environments. For industries looking for robust piping solutions, mss sp 75 wphy 70 pipe fittings remain a top choice for quality and reliability.
