In industrial piping systems, maintenance efficiency is just as important as valve performance. Downtime during servicing can disrupt operations, increase costs, and impact productivity. This is why the three piece ball valve is widely preferred in many industrial applications. Its unique design allows easy inspection, cleaning, and repair without disturbing the pipeline, making it a practical choice for systems that require frequent maintenance.
Understanding the Three Piece Ball Valve Design

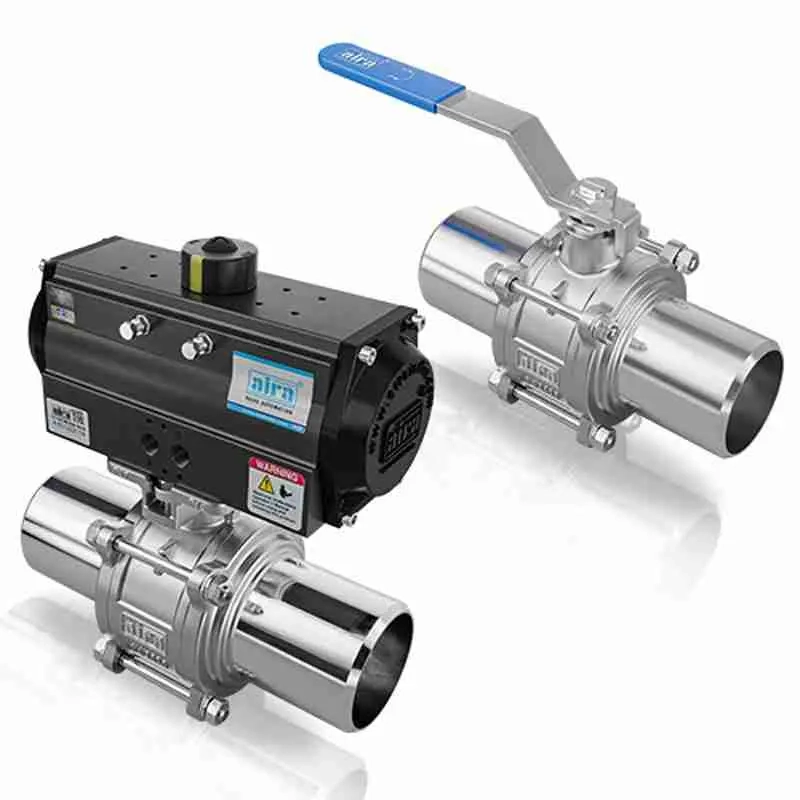

A three piece ball valve consists of three main sections: a central body containing the ball and seats, and two end connections that are fixed to the pipeline. These sections are bolted together, allowing the center body to be removed independently.
This modular construction is the key reason why three piece ball valves are known for their maintenance-friendly design.
In-Line Maintenance Without Pipe Removal
One of the biggest advantages of a three piece ball valve is the ability to perform maintenance without removing the valve from the pipeline. The center section can be detached while the end connections remain in place.
This feature allows:
- Faster servicing and repairs
- Reduced system downtime
- Lower labor costs
For continuous process industries, this is a significant operational benefit.
Easy Cleaning for Hygienic Applications
In industries such as food processing, pharmaceuticals, and chemicals, cleanliness is essential. Three piece ball valves allow easy access to internal components for thorough cleaning.
The ability to remove and clean the valve body supports hygienic operations and helps prevent product contamination between batches.
Simplified Inspection and Component Replacement
With a three piece ball valve, internal parts such as seats, seals, and the ball can be inspected and replaced without cutting or dismantling the piping system. This simplifies routine inspection and extends the overall life of the valve.
Replacing worn components instead of the entire valve also reduces maintenance costs.
Improved Flexibility for Process Modifications
Three piece ball valves provide flexibility when process requirements change. The center body can be replaced or upgraded to suit new operating conditions, such as different pressure ratings or materials, without altering the pipeline layout.
This adaptability makes them suitable for evolving industrial processes.
Reliable Sealing After Reassembly
Despite being designed for easy disassembly, three piece ball valves maintain reliable sealing performance when properly reassembled. Precision-machined components ensure tight shut-off and consistent operation after maintenance activities.
This reliability is critical for preventing leakage and maintaining process safety.
Compatibility with Automation Systems
Three piece ball valves can be easily fitted with manual handles or automated actuators. Their robust construction supports frequent operation, making them suitable for automated systems where regular cycling is required.
Common Industrial Applications
Three piece ball valves are widely used in:
- Chemical and petrochemical plants
- Food and beverage processing
- Pharmaceutical manufacturing
- Water treatment systems
- Industrial utility lines
Their maintenance-friendly design makes them ideal for applications requiring regular inspection or cleaning.
Conclusion
The three piece ball valve is preferred for easy maintenance due to its modular design, in-line serviceability, and accessibility of internal components. By reducing downtime, simplifying repairs, and supporting hygienic operations, these valves offer long-term operational advantages for industrial flow control systems.
