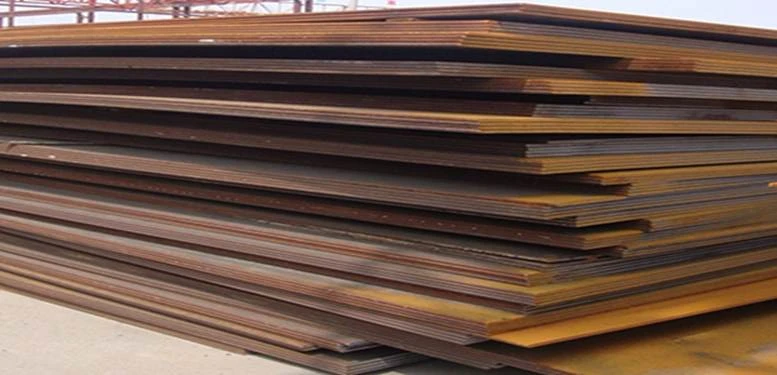

Mild Steel Plates are preferred choice for most of the industries due to their reliable performance and ease of fabrication. They are the backbone of countless every day and heavy-duty applications. They are known for their strength, flexibility, and cost-effectiveness, and are widely used in construction, manufacturing, and engineering industries.
What are Mild Steel Plates?
They are low-carbon steel product, typically containing a small percentage of carbon. The low carbon content gives them the characteristic of softness, making it easy to cut, bend, weld, and shape without compromising strength. Unlike high-carbon steel products, mid steel offers a balanced combination of durability and workability, making it suitable for a wide range of applications.
They are known for their ability to perform well in both structural and general-purpose applications. They have uniform composition giving them consistent strength throughout the plate which is important in load-bearing structures. They are easy to weld so it allows fabricators to complete projects efficiently and with minimal material waste. They are mostly chosen for large scale projects because of their wide availability and affordability.
Why choose Mild Steel Plates?
Choosing Mild Steel Plates comes up with several key features. The key features are:
· Excellent strength with good flexibility
· Easy to cut, weld, bend, and fabricate
· Cost-effective compared to high-alloy steels
· Uniform thickness and consistent mechanical properties
· Suitable for surface treatments like painting and galvanizing
· Reliable performance for both light and heavy-duty use
Applications of Mild Steel Plates
Their adaptability makes them suitable for both indoor and outdoor applications when properly protected. Their common applications include:
· Construction and structural frameworks
· Bridges, buildings, and support structures
· Manufacturing of storage tanks and containers
· Automotive components and machinery parts
· Fabrication of industrial equipment
· Shipbuilding and railway components
· General engineering and metalworking projects
Mild Steel Plates Grade and Specification:
Sr. No.
Material
Size
Thickness
Specification
1
Mild Steel
1220 mm x 4880 mm
1500 mm x 6300 mm
2000 mm x 10000mm
2500 mm x 10000mm
1 mm
to 150 mm
IS 2062
2
GI
1220 mm x 2440 mm
1220 mm x 6000 mm
1500 mm x 6300 mm
1 mm
to 20 mm
DIN, BS, IS & EN Series
Size (L * W) mm
Thickness (T) mm
Mass Kgm/Metre
2000 x 1000
1.5
12.56
2000 x 1000
2
15.70
2000 x 1000
2.5
19.63
2000 x 1000
3
23.55
2000 x 1000
4
31.40
2000 x 1000
5
39.25
2000 x 1000
6
47.10
2000 x 1000
8
62.80
2000 x 1000
10
78.50
2000 x 1000
12
98.12
2000 x 1000
15
117.75
2000 x 1000
20
157.0
2000 x 1000
25
196.25
2500 x 1250
1.5
12.56
2500 x 1250
2
15.70
2500 x 1250
2.5
19.63
2500 x 1250
3
23.55
2500 x 1250
4
31.40
2500 x 1250
5
39.25
2500 x 1250
6
47.10
2500 x 1250
8
62.80
2500 x 1250
10
78.50
2500 x 1250
12
98.12
2500 x 1250
15
117.75
2500 x 1250
20
157.0
2500 x 1250
25
196.25
2500 x 1250
30
236.0
2500 x 1250
40
314.0
2500 x 1250
50
393.0
3000 x 1500
2
15.7
3000 x 1500
3
23.55
3000 x 1500
4
31.40
3000 x 1500
5
39.25
3000 x 1500
6
47.10
3000 x 1500
8
62.80
3000 x 1500
10
78.50
3000 x 1500
12
98.12
3000 x 1500
15
117.75
3000 x 1500
20
157.0
3000 x 1500
25
196.25
4000 x 2000
3
23.55
4000 x 2000
4
31.40
4000 x 2000
5
39.25
4000 x 2000
6
47.10
4000 x 2000
8
62.80
4000 x 2000
10
78.50
4000 x 2000
12
98.12
4000 x 2000
15
117.75
4000 x 2000
20
157.0
4000 x 2000
25
196.25
3000 x 1500
4
31.40
3000 x 1500
5
39.25
3000 x 1500
6
47.10
3000 x 1500
8
62.80
3000 x 1500
10
78.50
3000 x 1500
12
98.12
3000 x 1500
15
117.75
3000 x 1500
20
157.0
3000 x 1500
25
196.25
4000 x 2000
3
23.55
4000 x 2000
4
31.40
Chemical Properties of Mild Steel Plates:
Element
Content
Carbon, C
0.25 – 0.290 %
Copper, Cu
0.20 %
Iron, Fe
98.0 %
Manganese, Mn
1.03 %
Phosphorous, P
0.040 %
Silicon, Si
0.280 %
Sulfur, S
0.050 %
Mechanical Properties of Mild Steel Plates:
Mechanical Properties
Metric
Imperial
Tensile Strength, Ultimate
400 – 550 MPa
58000 – 79800 psi
Tensile Strength, Yield
250 MPa
36300 psi
Elongation at Break (in 200 mm)
20.0 %
20.0 %
Elongation at Break (in 50 mm)
23.0 %
23.0 %
Modulus of Elasticity
200 GPa
29000 ksi
Bulk Modulus (typical for steel)
140 GPa
20300 ksi
Poissons Ratio
0.260
0.260
Shear Modulus
79.3 GPa
11500 ksi
Physical Properties of Mild Steel Plates:
Physical Properties
Metric
Imperial
Density
7.85 g/cm3
0.284 lb/in3
Types of Mild Steel Plates:
Mild Steel Plates
Mild Steel Plates
Mild Steel Plates
Mild Steel Sheets
Mild Steel Plates Suppliers
Mild Steel ASTM A283 Cold Rolled Plates
Mild Steel IS 2062 GR. A Chequered Plates
ASTM A36 Mild Steel Plates Suppliers
ASME IS 2062 GR. A Mild Steel Plate 2B Finish Dealer
Mild Steel ASTM A283 CR Plates Stockholder
Mild Steel IS 2062 GR. B Hot Rolled Plates Dealer
Mild Steel IS 2062 GR. A HR Plates
ASTM A283 Mild Steel Plates Exporter
ASTM A283 High Quality Mild Steel Plates
ASTM A36 Mild Steel Cold Drown Plates
Mild Steel ASME IS 2062 GR. A Flat Plates
Mild Steel ASME IS 2062 GR. A Coils Distributors
Mild Steel ASTM A36 Shim Sheets Stockist
Mild Steel ASTM A283 High Quality Plates
ASTM A283 GR.C Mild Steel Strips Sheets
ASTM A283 Mild Steel #4 Finish Sheet
Mild Steel 2B Finish Plate
Mild Steel Cold Drawn Plates
ASTM A36 Mild Steel Heat Resistant Plates
Mild Steel Plates Manufacturer
Mild Steel Perforated Sheets Exporter
Conclusion: Mild Steel Plates are a popular choice in many fields because they are strong, easy to work with, and cheap. They are a great choice for construction, manufacturing, and general engineering needs because they are easy to make and can be used in a lot of different ways. Mild steel plates are still a good and reliable choice for projects that need reliable performance without spending too much money.
