One of the fastest-growing industrial centres in India is Ahmedabad, Gujarat, where OEMs, infrastructure projects, and process industries need reliable flow-control equipment. Butterfly Valve suppliers and manufacturers in Ahmedabad contribute significantly to this ecosystem by providing small, affordable, and simple-to-maintain valves.
What is a Butterfly Valve?
A quarter-turn rotary valve used to start, stop, and control pipeline flow is called a butterfly valve. A round disc fixed on a shaft regulates the flow. The valve shifts from fully open to fully closed (or vice versa) when the disc spins 90 degrees. Butterfly valves are more affordable, lighter, and operate more quickly than gate or globe valves, particularly in large diameter pipelines.
Butterfly Valve Design & Construction (Technical Overview)
A standard industrial butterfly valve consists of:
- Body: The outer casing that connects to the pipeline (wafer, lug, flanged styles).
- Disc: The rotating element that throttles/blocks the flow.
- Stem/Shaft: Connects disc to the actuator or handle and transmits torque.
- Seat/Liner: Ensures tight shut-off; can be elastomeric (EPDM/NBR) or PTFE lined for chemical resistance.
- Bearings/Bushings: Reduce friction and increase cycle life.
- Seal/Stem Packing: Prevents leakage from the stem area (O-rings/packing).
- Operator/Actuator: Manual lever/gear box, pneumatic, or electric actuator.
The disc profile of better constructed valves is optimised to lower pressure drop and enhance throttling efficiency. In order to keep valves stable under pressure and frequent cycling—particularly in utilities and process plants—MNC Valves focusses on sturdy design.
Working Principle (How Butterfly Valve Works)
The operation of a butterfly valve is straightforward but efficient:
- Open Position: Disc is parallel to the flow direction, allowing fluid to pass with minimal obstruction.
- Throttling/Control: Disc rotates partially to restrict flow; used for flow regulation (with care in high ΔP conditions).
- Close Position: Disc turns perpendicular to flow and seals against the seat/liner to stop flow.
Its quick action due to its quarter-turn design makes it perfect for automated control loops, isolation tasks, and emergency shut-off.
Materials Used: CI, DI, SS 304, SS 316, PTFE Lined
Selecting the right valve material is critical for corrosion resistance, strength, and compatibility:
- Cast Iron (CI): Common in water distribution and general utility; economical.
- Ductile Iron (DI): Higher strength and impact resistance vs CI; preferred for municipal water, firefighting, and industrial utilities.
- SS 304: Good general corrosion resistance; used in food, water, and mild chemical service.
- SS 316: Better pitting/chemical resistance (chlorides, aggressive media); preferred in chemical, pharma, marine environments.
- PTFE Lined Butterfly Valve: Excellent for acids, alkalis, solvents, and corrosive chemical media; offers strong chemical resistance and low friction.
Customers may match valve choices with media type, temperature, and corrosion profile thanks to MNC Valves' support for numerous material configurations.
Pressure Ratings & Operating Range
Depending on their design and intended use, butterfly valves come in a variety of pressure classes. Typical industrial products consist of:
- PN10 / PN16 for water supply, HVAC, and general industrial services
- Higher ratings available depending on body design, disc, shaft strength, and sealing system
- Temperature and pressure performance depends on seat/liner (EPDM/NBR vs PTFE), metal grade, and actuator torque
Always choose the valve based on working pressure + surge pressure, media temperature, and cycle frequency for optimal safety and longevity.
Advantages of Butterfly Valves (Why Industries Prefer Them)
Butterfly valves are popular because they offer:
- Compact & lightweight design (easy installation and handling)
- Quarter-turn quick operation (manual or automated)
- Cost-effective for large diameters
- Low maintenance with fewer moving parts
- Good shut-off performance with proper seat selection
- Automation-friendly (pneumatic/electric actuation)
- Wide applications from water to chemicals and HVAC
Types of Butterfly Valves Available in Ahmedabad
1) Wafer Type Butterfly Valve
Most common style; fits between pipe flanges. Lightweight and economical—ideal for water supply, HVAC, utilities.
2) Lug Type Butterfly Valve
Has threaded lugs to bolt directly; useful where line maintenance needs end-of-line service and easy removal of one side.

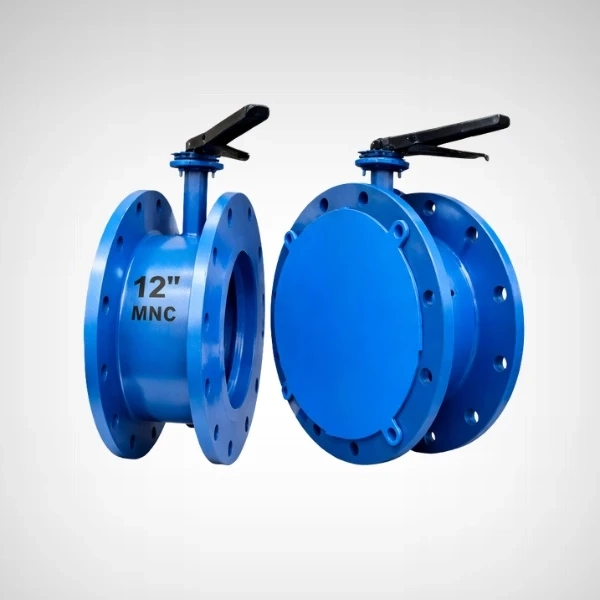

3) Flanged Butterfly Valve
Flanged end connections provide stronger mounting; preferred in heavy-duty pipelines, large sizes, and higher mechanical stability.
4) Pneumatic Butterfly Valve
Uses pneumatic actuator for fast, repeatable operation—excellent for automation in process plants, chemical dosing, and utilities.
5) Electric Butterfly Valve
Electric actuator for remote control and precise positioning; commonly used in HVAC automation, water treatment plants, and process control.
Industrial Applications of Butterfly Valves (Sector-Wise)
Water Supply & Distribution
In water networks, pumping stations, overhead tanks, and pipelines—particularly DI/CI bodies with EPDM seats—butterfly valves are frequently utilised for isolation and flow control.
Wastewater Treatment (STP/ETP)
Valves in sewage and effluent lines have to deal with corrosive environments and suspended solids. Aeration, sludge lines, tertiary treatment, and discharge are all aided by DI/SS choices with appropriate seating.
Chemical & Petrochemical Industries
In this case, compatibility is crucial. For acids, alkalis, and solvents, chemical transport, storage, and process skids, SS 316 and PTFE lined butterfly valves are recommended.
Oil & Gas (Upstream/Downstream Utilities)
Butterfly valves are frequently used in utility water, cooling systems, firewater lines, ventilation, and non-critical hydrocarbon services with proper material selection, while severe usage necessitates specialised designs.
Power Plants
utilised in general plant utilities, ash handling water, auxiliary water systems, cooling water circuits, and condenser lines. They are a great option because of their dependability and speed of operation.
HVAC & Building Utilities
A big demand segment in Ahmedabad’s commercial and industrial buildings. Butterfly valves work well in chilled water, hot water, condenser water lines—especially with gear-operated or electric actuators.
Food & Beverage
SS 304/316 valves are used for hygiene-sensitive operations like water lines, syrup transfer, CIP systems, and utility flow control (ensure food-grade compliance as per project requirement).
Pharmaceutical
Pharma utilities need cleanable and corrosion-resistant valves. SS 316 and appropriate sealing are selected for water systems, solvent lines, and plant utilities.
Cement Industry
Used in cooling water, compressed air utilities, and slurry/utility services where rugged construction and easy maintenance are important.
Steel Plants
Steel industry requires valves for cooling water systems, gas cleaning plants, utility pipelines, and process circulation where fast shutoff is beneficial.
Pulp & Paper
Butterfly valves are applied across water handling, chemical dosing, bleaching circuits (with compatible materials), and effluent lines depending on media.
Why Choose MNC Valves – Trusted Butterfly Valve Manufacturer in Ahmedabad
Three things are what consumers look for when looking for butterfly valve manufacturers and suppliers in Ahmedabad, India: application support, quality, and consistency. MNC Valves is an Ahmedabad-based company that specialises in producing industrial-grade butterfly valve solutions in wafer, lug, flanged, pneumatic, and electric variants. MNC Valves provides consistent performance and service to the water, wastewater, chemical, HVAC, and numerous process sectors with options in CI, DI, SS 304, SS 316, and PTFE lined butterfly valves.
Conclusion
For industrial flow control, a butterfly valve is a clever, small, and affordable option, particularly when big diameter piping, automation, and rapid shut-off are needed. Butterfly valves provide dependable performance in water supply, wastewater, chemical and petrochemical, oil and gas utilities, power plants, HVAC, food, pharma, cement, steel and pulp and paper sectors when the proper design type, materials (CI/DI/SS/PTFE lined), and pressure rating are used. MNC Valves is a reliable option for high-quality manufacturing and industry-ready valve solutions if you're searching for a reputable Ahmedabad-based butterfly valve manufacturer.
