Why Is Pre-Inspection of Your Chain Pulley Necessary?

Chain pulleys are utilised in a wide variety of facilities for the purposes of heavy lifting as well as transportation. These pulleys can be found in both manufacturing and operations facilities. It is essential to perform a thorough inspection of chain pulleys before using them as part of your routine daily maintenance. This is because a chain pulley needs to be operated by hand in order to function properly.

One of the most crucial things that you need to do when it comes to chain pulleys is to inspect them. In order to do this, you must use a variety of tools, including a lubrication, a graphite, a drill, and a screwdriver. After you have completed the inspection, it is important to perform a test run. To do this, you need to ensure that the chain is properly greased and that the bolts are tight.

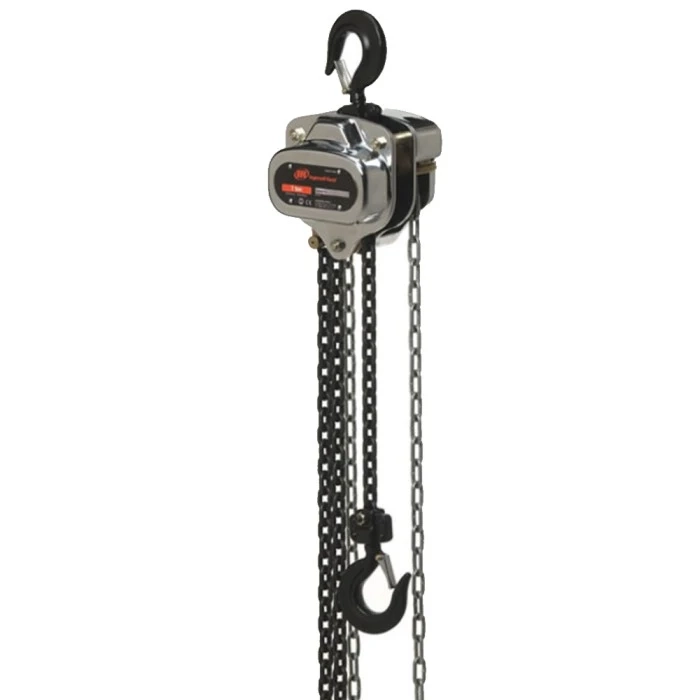

Ingersoll Rand Capacity 2 Ton Manual Chain Hoist SMB020-10-8V SMB Silver Series

Chain Pulley Inspection

Why is pre-inspection of chain pulley necessary?

Pre-inspection of chain pulley blocks is critical to avoid injury to operators or damage to the equipment being lifted or moved.

A proper daily pre-inspection can result in maximum work efficiency and the longevity of your manual chain hoist.

How do you go about performing the pre-inspection?

Here are a few crucial parts you must inspect as a hoist operator as part of the pre-inspection procedure before using any chain pulley block.

1. Nameplate

First, make sure the nameplate is securely fastened to the chain pulley block. The name plate contains critical information, such as rated capacity or allowable load, and it must be easy for any operator to read. If the name plate is damaged and the load-related information is difficult to read, discard (or replace) your block.

2. Hooks

Hooks and latches are essential parts of any chain pulley. Examine each hook and latch to see if:

● It is tightly fastened to the device.
● It operates smoothly and efficiently.
● It is freely rotating with no obstructions.
● It is free of gouges, nicks, and other forms of deformation.
● It is not deformed as a result of being exposed to high temperatures.

Depending on its dimensions, each chain hook has a recommended rated load. Replace the chain hook if its dimensions exceed the maximum allowable limits.

Boltz 2 Ton 3 Mtr HSZ-C Chain Pulley Block HSZ-C

3. Chains

The load chain and the hand chain are the next components to be inspected (used by the operator). Both of these chains must be in good working order for your chain pulley block to operate safely and smoothly.

Here’s what you should look for:

● If any chain links are twisted, stretched, or otherwise deformed?
● If there is any severe corrosion throughout the chain?
● If the chain has any scratches or gouges – or any discoloration caused by exposure to extreme heat?
● If the chains have been lubricated properly?

Any damage to the chain, whether caused by overloading or poor maintenance, can cause it to break during operation. Furthermore, if the hoist has two or more chain falls, please inspect the chain hoist from below for any chain twists. If the chain has been twisted, your bottom chain hook has most likely been flipped over. In this case, flip it back to its original position.

4. Hoist Body

Next, examine the external appearance of your chain hoist body. Major flaws in the hoist body can cause parts to fall off while lifting – or even dropping – heavy loads.

Here’s what you should look for:

● If your hoist body has any significant dents or deformations as a result of excessive use or loads?
● If your hoist has any rusted parts as a result of rain or moisture exposure?
● If any of your hoist’s nuts or bolts are loose, displaced, or missing?

Yato YT-58951 Chain Block 1 Ton

Following inspection of a chain pulley
After you have completed the pre-inspection of your chain hoist, check for normal operation in the following ways:

● When manually lifting the chain, make sure the chain pulley makes a “clicking” sound.
● Check to see if the pull force on your chain is normal and if you need to apply additional force to pull up any load.
● Once the hand chain operation is stopped, your lifted load remains at the same height or position.
● If any functions are not working properly, your chain hoist may have some internal issues.

Here’s what you need to do to avoid any accidents caused by a malfunctioning hoist:

● With immediate effect, stop using your equipment.
● Mark your chain hoist with a label or tag indicating that it is currently unavailable. This is to ensure that no other chain operator picks up and uses the defective hoist by accident.
● Create a service maintenance ticket as soon as possible so that the service or maintenance engineer can attend to the faulty equipment.

One of the most overlooked safety procedures to keep workers safe on the job is pre-inspection of the equipment they will use. It is sometimes tempting to skip this step to maximize your production, but it is vital to the safety of your workers that you not only run a pre-inspection procedure but that they are also aware of it and understand why it is necessary. We hope this blog post was able to show you the importance of pre-inspection.
