What are the Process and Applications of Thermoforming Machine
![Thermoforming Machine-4a027604](https://theomnibuzz.com/wp-content/uploads/2022/09/Thermoforming-Machine-4a027604.jpeg)
The Global Thermoforming Machines Market is estimated to increase at a CAGR of 7.0% from USD 4.27 billion in 2021 to USD XX billion by 2030. The growth of this market can be attributed to increased demand for reused foods and shifting consumer preferences for convenience foods.
Thermoforming machines produce three-dimensional objects by hotting a plastic distance until it becomes malleable enough to mould. The softened plastic is then moulded into the appropriate shape before being chilled to harden. Manual, semi-automated, and fully automatic thermoforming machines are available.
This article will discuss everything about thermoforming machines and applications. Discussion topics include:
What is a Thermoforming Machine
Process of Thermoforming: How Do Thermoforming Machines Work
Two Main Types Of Thermoforming
Applications: What are the uses of Thermoforming Machine
What is a Thermoforming Machine
Thermoforming is the process of compressing a hot plastic sheet over a mould, trimming the design after the sheet has cooled, and then assembling the design to create unique packing solutions.
It is a high-performance technique for producing plastic items from semi-finished sheets, with diverse applications ranging from packaging to home appliance and automotive parts.

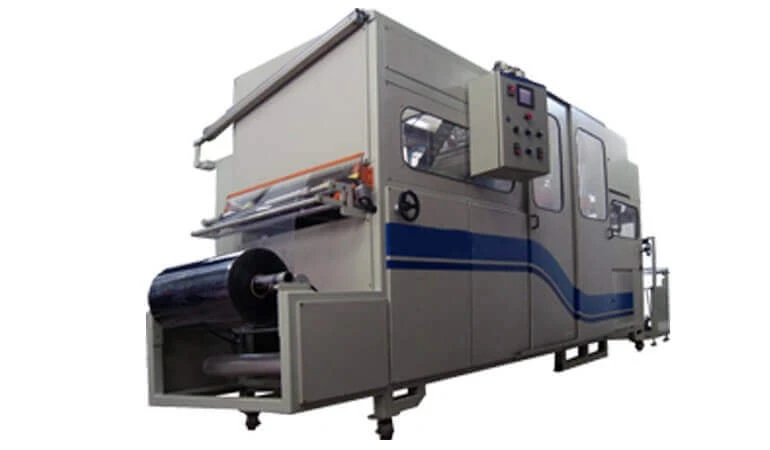

A massive piece of manufacturing machinery called a thermoforming machine allows you to mould a sheet of plastic onto an object while sucking the air out of the gap. These machines are used and benefited by a variety of industries to efficiently package their goods.
It is a versatile piece of equipment that can be used to create a variety of small and large plastic objects. The machine uses the thermoforming process to heat and mold the plastic into the desired shape. Thermoforming is a quick and easy way to create small plastic objects, and the machine is very user-friendly.
It can be used to manufacture retail packaging, blister packaging, pick and place trays, material and handling trays, shipping trays, medical packaging, pop displays, package inserts, and much more!
Read another article: What’s benefits of buying tamper proof paper bags from the manufacturer
How Do Thermoforming Machines Work
Thermoforming Process: Thermoforming is a process of forming plastic sheeting into various shapes by heating the plastic sheeting.
The plastic sheeting is heated to a certain temperature, and as the plastic warms, it contracts, which forces the plastic to conform to the shape of the chamber at last the sheeting is rapidly cooled.
In Short:
- Plastic sheets being heated
- Filling Mold Cavities using Plastic Sheets
- Cutting Shaped Sheets
Thermoforming Technique Stages
Thermoforming involves numerous phases, much like any other process. The following steps comprise a typical thermoforming process:
- Design
- Prototyping
- Finalising tools
- Production
- Shipping
Thermoforming machines work by heating a pre-formed sheet metal into a liquid state, which allows it to be formed into the desired shape. The sheet metal is then cooled, and the resulting object is removed from the machine.
This allows the machine to mold the plastic into any shape you want. The Thermoforming process is used to create a wide variety of products, including signs, boxes, containers, and more.
Custom-shaped plastic food containers such as cups, plates, bowls, and trays can be created using thermoforming equipment.
Two Main Types Of Thermoforming
Thermoforming can be divided into two categories:
Vacuum forming and, Pressure forming.
Plastic sheets are drawn into their final shape during vacuum forming using heat and pressure. A vacuum is used to shape a heated sheet after it has been put over a mould and heated.
Vacuum forming and pressure forming are quite similar, but pressure forming has the advantage of more pressure. When aesthetics are a concern, this pressure allows for more detail and texture, making it a wise choice.
Vacuum forming, Heat and pressure are used to shape plastic sheets during its process. First, a heated sheet is put over a mould, where it is manipulated into the appropriate shape by a vacuum forming machine.
When the material is removed from the mould, it has a perfect shape. This method of thermoforming yields dimensionally stable pieces on one side and high-quality aesthetics on the other.
Pressure forming is analogous to vacuum forming, but it benefits from redundant pressure. The procedure also entails hotting a distance of plastic and adding a pressure box to the thenon-mold side of the distance.
In addition to the vacuum on the mold side, the pressure box generates up to 60 pounds per forecourt inch( PSI) of air pressure. Sharp detail is produced as a result of the increased pressure.
Applications: What are the uses of Thermoforming Machine
Thermoforming has numerous applications. Packaging is one of the most prevalent, particularly hard packaging for food and consumer items, but it has many other applications. Because different thickness sheets can be employed, this process can be utilised to make toys as well as permanent surfaces on automobiles.
Thermoforming machines are a great way to create custom products, such as boxes, trays, and more. They’re also great for creating permanent displays or displays that can be taken apart and moved around easily such as for retail stores or offices.
They can be used to create products in a variety of shapes and sizes, making them a great investment for businesses that want to create unique products.
Among the most typical include, but are not limited to:
- Clamshell packaging for retail
- Blister packaging
- Choose and set trays.
- Trays and coverings for materials and handling
- Transport trays
- Health care packaging
- Pop-up signs
- Boxes with inserts, etc
Final Words
We hope this article has provided you with all of the information that you need to know about thermoforming machines. You may be wondering if there are any other applications for these machines besides packaging, and we’ve discussed two main types of thermoforming as well as what they are used for.
If you want to learn more about this process or any other aspects of thermoforming, we recommend contacting a company like Sri Sai Thermoformer who specialize in providing high-quality products at competitive prices.
