In the ever-evolving world of electronics and high-performance computing, one element consistently dictates the boundaries of performance, reliability, and lifespan: thermal management. As CPUs, GPUs, power electronics, and compact devices continue to climb in power density, the need for efficient heat dissipation becomes more pressing. Engineers and system designers are constantly faced with a crucial decision — which cooling solution, such as a Vapor Chamber, best keeps their systems running optimally with minimal thermal stress?

Two of the most prominent and advanced passive cooling technologies today are the Vapor Chamber and the Heat Pipe. While both share similar heat-transfer principles rooted in phase-change cooling, they each offer unique capabilities and limitations.

What is a Vapor Chamber?

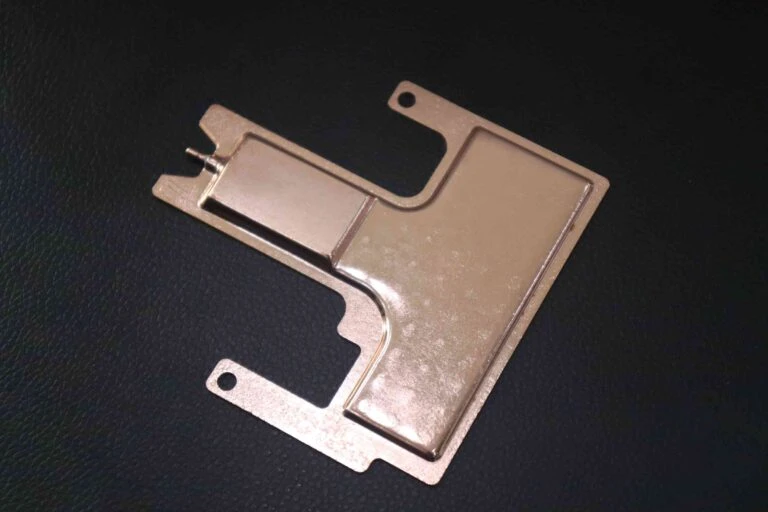

A Vapor Chamber is a highly efficient thermal spreader designed to distribute heat evenly across a flat surface. Essentially, it is a vacuum-sealed metal chamber, usually made from copper or aluminum, filled with a small volume of working fluid (such as deionized water). When this fluid absorbs heat from the source below, it evaporates and moves quickly throughout the chamber as vapor. Once it reaches a cooler part of the chamber, the vapor condenses back into a liquid, releasing the heat to the environment via bonded heat sinks or metal fins. The built-in wick structure uses capillary action to return the liquid to the heat source, continuously repeating the cycle.

This closed-loop system makes vapor chambers ideal for high-performance, uniform cooling across flat components such as CPUs, GPUs, and power modules.

What is a Heat Pipe?

A Heat Pipe, on the other hand, is a cylindrical or flattened tube also filled with a small amount of working fluid and lined with an internal wick structure. It operates based on the same phase-change principle: heat causes the fluid inside the tube to evaporate, then move away from the heat source (evaporator end), and as it cools down, it condenses back into liquid (condenser end), which returns to the evaporator through capillary action.

Heat pipes are generally ideal for point-to-point heat transfer and excel when heat needs to be transported from a localized area (e.g., CPU die) to a remote fin stack or radiator area.

Core Similarities Between Vapor Chambers and Heat Pipes

Before comparing performance, it’s important to note that both vapor chambers and heat pipes share some functional similarities:

• Both use phase-change cooling with a working fluid inside a sealed metal enclosure
• Both rely on capillary action and wick structures for fluid return
• Both offer high thermal conductivity—significantly above pure metal heat spreaders
• Both are passive thermal solutions that require no electricity or moving parts

While they are rooted in the same scientific principles, their structures, performance patterns, and best-use cases differ substantially.

Vapor Chamber vs Heat Pipe: Feature-by-Feature Comparison

Let’s judge the two technologies across different performance factors:

1. Thermal Conductivity and Spreading Efficiency

• Vapor Chamber: Offers excellent 2D heat spreading, making it ideal for evenly distributing thermal load across the surface of power-dense components (e.g., high-performance chips or SoC packages).
• Heat Pipe: Excels in 1D heat transport but not thermal spreading. It shines when the goal is to carry heat from one point to another—especially over distance.
• Winner: Vapor Chamber (for spreading), Heat Pipe (for transport)

2. Form Factor and Design Flexibility

• Vapor Chamber: Typically flat and rectangular. While they are space-efficient for slim applications (ultrabooks, smartphones), they can be slightly challenging to include in complex geometries.
• Heat Pipe: Extremely versatile in shape. Can be bent, flattened, or kinked to fit constrained spaces or woven around components.
• Winner: Heat Pipe

3. Cooling Capacity (Q-Max)

• Vapor Chamber: Offers higher cooling capacity for its size due to its larger surface area and improved heat dissipation potential. Ideal for TDP >100W applications.
• Heat Pipe: Suitable for mid-range thermal performance. Single heat pipes typically handle 5W–30W depending on dimensions and orientation.
• Winner: Vapor Chamber (for high power loads)

4. Orientation Sensitivity

• Vapor Chamber: Performance is less impacted by orientation due to its symmetrical design and sophisticated wick structure.
• Heat Pipe: Gravity affects return of liquid if not designed with proper wick grading or orientation in mind.
• Winner: Vapor Chamber

5. Manufacturing Cost and Complexity

• Vapor Chamber: More expensive to manufacture due to complex tooling, precision welding, and testing requirements.
• Heat Pipe: Lower production costs. Easier and faster to produce in high volumes.
• Winner: Heat Pipe (especially for cost-sensitive projects)

6. Durability and Reliability

• Vapor Chamber: Built as a solid unit with less chance of mechanical stress failure. Often used in mission-critical or ruggedized electronics.
• Heat Pipe: More prone to deformation or leakage if bent incorrectly, but reliable with proper handling.
• Winner: Vapor Chamber

Use Case Applications: When to Use Each Technology

Though both technologies are built on the same principles, their distinct characteristics make them ideal for different environments:

✅ Opt for Vapor Chamber if your application involves:

• High-performance gaming CPUs/GPUs with dense heat flux
• Data center servers and blade systems

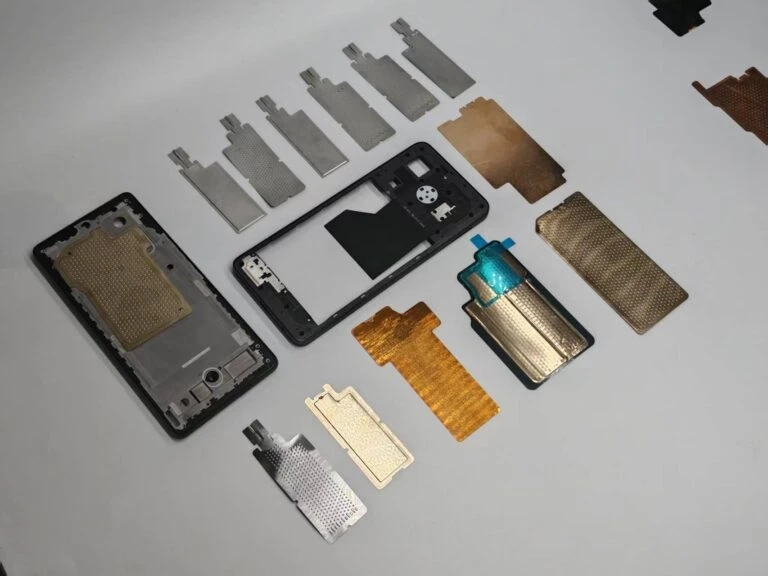

• Compact devices (smartphones, tablets) demanding thin but efficient conduction
• Medical and military electronics demanding uniform cooling
• 5G and telecom equipment offering limited airflow and high heat density

✅ Opt for Heat Pipes if you're working with:

• Laptops and desktops requiring remote heat dissipation
• LED lighting systems
• Consumer electronics with constrained internal geometries
• Devices where cost and flexibility are key factors
• Mid-range industrial electronics with separate heat sinks

Real-World Example Comparisons

🌐 Laptop Thermal Management

Most laptops combine both technologies:

• Use heat pipes to transfer heat from the processor dies to radiators on the edge.
• Use vapor chamber in premium devices (e.g., gaming laptops, content creator laptops) to spread heat evenly under the entire keyboard or chassis.

🔧 Graphics Cards

Modern GPUs like those from NVIDIA’s RTX or AMD’s Radeon series increasingly use vapor chamber bases to enable even heat distribution, paired with heat pipes that transfer that heat to separate fin stacks.

Industry Case Studies with Tone Cooling Technology Co., Ltd

As a thermal solution leader, Tone Cooling Technology Co., Ltd. has successfully implemented vapor chamber and heat pipe technologies in diverse industry applications:

🎮 Case Study 1: High-End Gaming Laptop Cooling

• Objective: Cool a 120W CPU + 200W GPU setup in a 17” gaming laptop.
• Solution: Designed a custom dual-chamber vapor plate integrated with multi-directional heat pipes.
• Result: Achieved sustained performance with temperatures under 85°C at full load.

📡 Case Study 2: Telecom Base Station Thermal Backplane

• Objective: Passively spread 75W of concentrated SoC heat with minimal vertical clearance.
• Solution: Implemented a copper vapor chamber with graphite thermal interface pads.
• Result: 12% temperature reduction over heat spreader alone, no added fans required.

Custom Engineering Support by Tone Cooling Technology Co., Ltd

At Tone Cooling, we understand that every project comes with unique thermal requirements. That’s why we offer:

1. Custom vapor chamber and heat pipe design
2. Rapid prototyping with CNC and precision welding
3. Integration support with chassis and enclosures
4. Complete thermal simulation services (CFD)
5. OEM manufacturing for consumer and industrial clients

Whether you need a single component or a full thermal subsystem, our expert engineers can tailor the optimal solution.

Which Cooling Technology Reigns Supreme?

There’s no one-size-fits-all answer. The winner of the Vapor Chamber vs Heat Pipe debate depends entirely on your thermal management objective.

• For high power, high density, and uniform surface cooling, the vapor chamber is the superior choice.
• For flexibility, cost-efficiency, and point-to-point heat transport, heat pipes take the crown.

Often, the best solution is a hybrid design that leverages the strengths of both technologies. By partnering with Tone Cooling Technology Co., Ltd., you gain access to deep expertise, custom engineering, and proven solutions tailored to your specific thermal needs.

FAQs: Vapor Chamber vs Heat Pipe

Q1: Can I use both vapor chambers and heat pipes in one system?

A1: Absolutely. In many systems like laptops, smartphones, and GPUs, vapor chambers are used to spread heat, while heat pipes deliver the heat to distant fins. Combining both can yield excellent thermal performance.

Q2: Which performs better under horizontal and vertical orientation?

A2: Vapor chambers are less sensitive to orientation changes, while heat pipes may suffer if gravity impedes capillary return. Orientation should be considered in design with heat pipes.

Q3: Is a vapor chamber worth the added cost?

A3: If your application deals with high heat flux density or needs ultra-thin cooling with even heat distribution, yes. Vapor chambers are investment-worthy for high-end electronics, mission-critical industrial devices, or thermally constrained systems.

Q4: Are there size limitations for vapor chambers or heat pipes?

A4: Yes. Vapor chambers are typically limited in size due to vacuum-sealing constraints but are advancing rapidly. Heat pipes can be manufactured and routed in long lengths, making them suitable for remote cooling.

Q5: What is the typical lifespan of a vapor chamber vs a heat pipe?

A5: Both technologies can last over 10 years if manufactured and handled correctly. At Tone Cooling Technology Co., Ltd, all our products undergo rigorous pressure and leak testing to ensure long-term reliability.
