In the complex world of mechanical systems, few components are as vital—yet overlooked—as couplings. These essential devices ensure the seamless transmission of power between rotating shafts, prevent equipment overload, and support system alignment. Two of the most significant types of couplings used in modern industries are flange couplings and fluid couplings. Each plays a unique role in ensuring efficiency, durability, and safety in diverse applications—from heavy-duty machinery to high-speed conveyors.
Understanding Couplings: The Core Connection
A coupling is essentially a mechanical part that joins two shafts to transmit power. But this simple description doesn’t capture the engineering brilliance behind them. The right coupling does much more than connect shafts—it reduces maintenance costs, absorbs misalignment, protects motors from overloads, and improves the lifespan of connected equipment.
Flange Couplings: Industrial Strength in Every Bolt
What is a Flange Coupling?

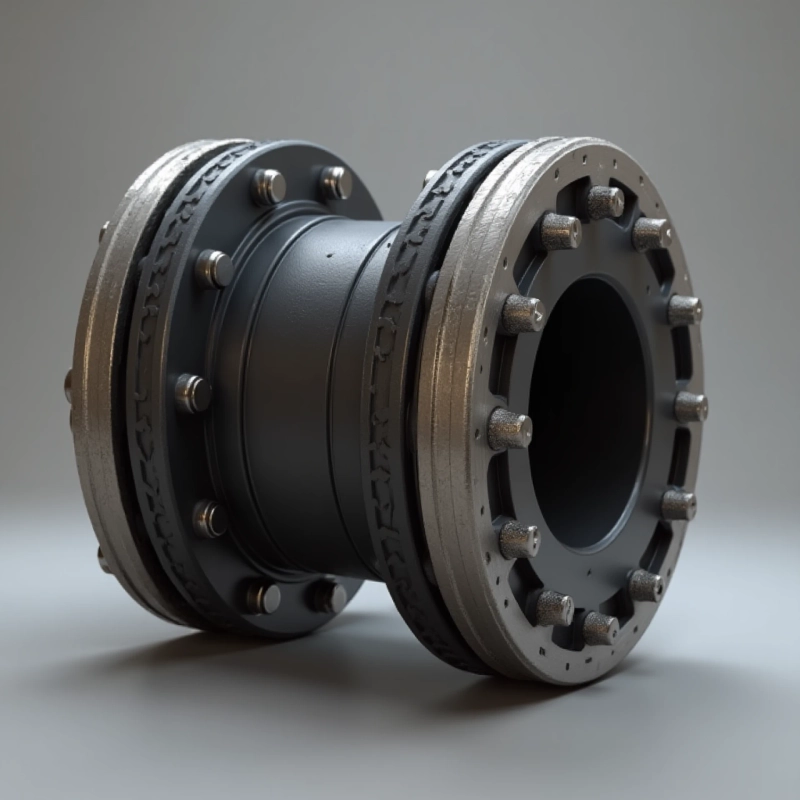

Flange couplings consist of two flanges—one on each shaft—joined together with bolts. This rigid coupling ensures a strong, aligned connection that’s ideal for high-torque, heavy-duty operations. You’ll typically find them in industries like manufacturing, shipbuilding, steel mills, and energy plants.
Key Features:
- Strong and durable, ideal for harsh working environments
- Handles high torque transmission
- Simple to install and maintain
- Best suited for applications where shaft alignment is precise
Use Cases:
- Compressors and blowers
- Gearboxes and turbines
- Industrial pumps and motors
- Steel rolling mills
Flange couplings are all about reliability. Once bolted in place, they offer a robust and solid connection that won’t let you down under heavy loads.
Fluid Couplings: Power with Smooth Precision
What is a Fluid Coupling?
Unlike flange couplings, fluid couplings rely on hydraulic fluid to transmit torque. They consist of three key parts: an impeller (input), a turbine (output), and fluid in between. This type of coupling provides controlled acceleration and shock absorption—making them ideal for systems with frequent start-stops or high inertia loads.
Key Benefits:
- Smooth start-up without sudden torque spikes
- Built-in overload protection
- Reduces mechanical wear and tear
- Extends the life of connected machinery
Where Are Fluid Couplings Used?
- Conveyor belts
- Crushers
- Elevators
- Marine drives
- Thermal and hydro power stations
Fluid couplings are especially beneficial in industries requiring controlled, jerk-free starts or where varying loads are common. They reduce strain on motors, allowing for consistent, energy-efficient operation.
Flange vs Fluid Couplings: A Comparative Insight
FeatureFlange CouplingsFluid CouplingsTypeRigid mechanical connectionHydrodynamic (fluid-based) connectionTorque ControlDirect and fixedVariable and smoothMisalignment HandlingVery low toleranceHigh toleranceApplicationsHigh-torque, steady loadVariable load, soft start systemsMaintenanceSimple (may need alignment checks)Requires fluid level monitoring
Each coupling has its place depending on the system’s requirements. For machines that require rigidity, durability, and high torque with little fluctuation, flange couplings are the go-to. However, if your operations require smooth power transmission with overload protection, fluid couplings are the better choice.
Selecting the Right Coupling for Your Needs
When choosing between flange and fluid couplings, consider the following:
- Load characteristics: Steady vs variable
- Startup behavior: Hard start or soft start
- Shaft alignment: Precise or misaligned
- Vibration control: Need for dampening
- Torque fluctuation: Constant or irregular
For example, a cement conveyor belt with heavy startup loads would benefit from a fluid coupling, whereas a power generator with consistent speed and load may perform best with a flange coupling.
The Engineering Evolution: What's New in 2025?
In today’s rapidly advancing industrial landscape, coupling technology is not stagnant. New designs include:
- Self-aligning flange couplings
- Temperature-resistant fluid couplings
- Compact designs for limited-space applications
- Smart couplings with torque sensors and data output
These innovations are increasing the lifespan of industrial machinery, reducing downtime, and offering predictive maintenance solutions.
Maintenance Tips for Longevity
Both types of couplings require regular check-ups to function optimally:
For Flange Couplings:
- Ensure precise alignment to avoid premature wear
- Inspect bolts and torque settings regularly
- Check for signs of fatigue or corrosion
For Fluid Couplings:
- Monitor fluid levels and top up when needed
- Replace hydraulic fluid periodically
- Watch for leakage or overheating signs
Proper maintenance not only extends the life of your couplings but also enhances the safety and efficiency of your entire system.
Final Thoughts: The Right Coupling Drives Long-Term Success
In conclusion, choosing between flange couplings and fluid couplings isn’t just a technical decision—it’s a strategic one that can affect your operation’s productivity, cost efficiency, and machine longevity.
If your system demands rigid performance in harsh environments, flange couplings are unbeatable. On the other hand, if you value flexibility, overload protection, and smooth startups, then fluid couplings are the smarter choice.
To dive deeper into where and how fluid couplings are transforming industry applications, check out this detailed guide on fluid couplings applications.
