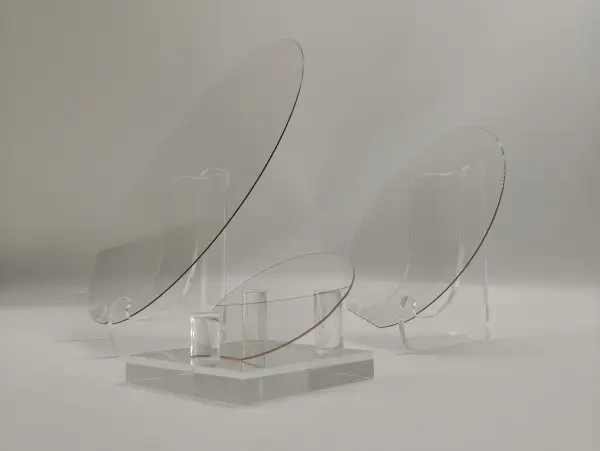

Silicon Carbide (SiC) power devices are prized for their ability to handle high power and operate efficiently. As the SiC industry matures, the focus is shifting beyond simply increasing wafer size (like the move to 8-inch) to also reducing wafer thickness. Ultra-thin SiC substrates, particularly those measuring around 200 micrometers (200μm), represent the next frontier in maximizing device performance, especially for the high-volume Electric Vehicle (EV) and energy storage markets.

The Opportunity: Why Thin is In

Reducing the substrate thickness directly addresses the two main bottlenecks in high-power applications: thermal management and switching efficiency.

1. Enhanced Thermal Dissipation: SiC devices generate heat, and the substrate acts as the primary thermal path away from the active device layers. A thinner substrate drastically reduces the thermal resistance between the device junction and the heat sink. This allows the device to run cooler or, conversely, handle higher power densities without overheating, significantly improving reliability and lifespan.
2. Improved Electrical Performance: For specific power device architectures, a thinner substrate reduces the overall series resistance of the component. This lower resistance translates directly to reduced conduction losses and improved efficiency, leading to higher output power from the same size chip. This is particularly critical in battery-powered applications where every percentage point of efficiency matters.

The Challenge: Brittle Materials and Warpage

The challenge in realizing ultra-thin SiC substrates is a matter of material science and precision engineering. SiC is an incredibly hard and brittle material, making it difficult to process compared to conventional silicon.

1. Handling and Breakage: Thinning a SiC wafer from the standard thickness (often 350μm or more) down to 200μm makes it highly susceptible to mechanical stress and breakage during all subsequent manufacturing steps, including grinding, polishing, epitaxy, and device fabrication. Yield loss due to breakage becomes a major economic concern.
2. Wafer Warpage and Bow: The process of thinning, whether through grinding or etching, can introduce or exacerbate internal stress within the crystal. This stress often manifests as wafer bow or warpage. This deformation can be minor on thicker wafers but becomes a critical problem at 200μm, making it difficult or impossible for the precise photolithography and etching equipment in the cleanroom to achieve the required alignment and uniformity. Poor uniformity translates directly to lower device yield.

The industry is working on advanced techniques—including specialized temporary bonding carriers, stress-relieving post-processing, and optimized thinning methods—to overcome these challenges and make ultra-thin SiC substrates economically viable for mass production.

For a comprehensive technical exploration of the processing methods, performance gains, and specific yield challenges associated with manufacturing and handling 200μm SiC substrates, you can read the full technical blog: Ultra-Thin 200μm SiC Substrates: Opportunities and Challenges
