Pipes are the backbone of modern infrastructure. From residential plumbing systems to large industrial networks, the right pipe selection ensures durability, efficiency, and long-term cost savings. Understanding the types of pipes based on application, material, structure, and pressure capacity is essential for engineers, contractors, builders, and homeowners.

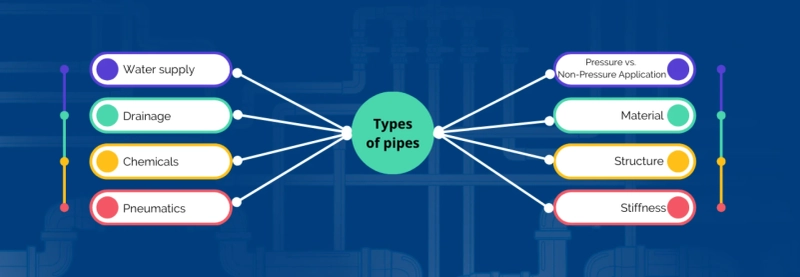

In this comprehensive guide, we will explore different pipe types including water supply pipes, drainage pipes, chemical pipes, pneumatic pipes, pressure vs. non-pressure applications, material classifications, structural designs, and stiffness categories to help you make an informed decision.
1. Types of Pipes Based on Application
1.1 Water Supply Pipes
Water supply pipes are designed to transport potable water safely and efficiently. These pipes must resist corrosion, withstand internal pressure, and ensure contamination-free delivery.
Common materials used:
PVC Pipes
CPVC Pipes
uPVC Pipes
HDPE Pipes
Key features:
Smooth internal surface for better flow
Corrosion resistance
Leak-proof joints
Long service life
Water supply pipes are widely used in residential buildings, commercial complexes, irrigation systems, and municipal water distribution networks.
1.2 Drainage Pipes
Drainage pipes are primarily used for wastewater and sewage management. Unlike water supply pipes, these usually operate under gravity flow rather than pressure.
Characteristics:
High chemical resistance
Strong impact resistance
Lightweight and easy to install
Cost-effective
SWR (Soil, Waste & Rainwater) pipes are commonly used in residential and commercial drainage systems.
1.3 Chemical Pipes
Chemical pipes are specially designed to handle aggressive fluids, acids, alkalis, and industrial chemicals. These pipes must withstand extreme temperatures and corrosive substances.
Important qualities:
Superior chemical resistance
High thermal stability
Pressure handling capacity
Non-reactive inner surface
Industries such as pharmaceuticals, fertilizers, petrochemicals, and manufacturing plants rely on chemical-grade piping systems.
1.4 Pneumatic Pipes
Pneumatic piping systems are used to transport compressed air or gases in industrial environments. These pipes must maintain airtight systems and withstand varying pressure levels.
Key requirements:
High pressure tolerance
Leak-proof fittings
Smooth internal bore
Lightweight and flexible
Pneumatic pipes are common in automation systems, factories, and industrial machinery setups.
2. Types of Pipes Based on Pressure Application
2.1 Pressure Pipes
Pressure pipes are designed to handle internal fluid pressure. They are used in water supply systems, irrigation, borewells, and industrial fluid transport.
Features:
Thick wall design
High tensile strength
Tested for pressure ratings (PN ratings)
Durable joints
Pressure pipes must comply with industry standards to ensure safety and long-term performance.
2.2 Non-Pressure Pipes
Non-pressure pipes are typically used in drainage and sewage systems where fluid flows due to gravity rather than internal pressure.
Characteristics:
Lightweight structure
Cost-effective
Easy installation
Ideal for underground drainage
Choosing the right pipe based on pressure requirement prevents leakage, bursting, and maintenance issues.
3. Types of Pipes Based on Material
Material selection plays a crucial role in determining pipe performance, lifespan, and application suitability.
3.1 PVC (Polyvinyl Chloride) Pipes
PVC pipes are widely used for water supply, irrigation, and drainage systems due to their affordability and corrosion resistance.
Advantages:
Lightweight
Easy to install
Rust-free
Long-lasting
3.2 CPVC (Chlorinated Polyvinyl Chloride) Pipes
CPVC pipes are ideal for hot and cold water systems. They can handle higher temperatures compared to standard PVC pipes.
Applications:
Residential plumbing
Commercial hot water systems
Industrial liquid transport
3.3 uPVC (Unplasticized PVC) Pipes
uPVC pipes are rigid and strong, making them suitable for high-pressure water supply systems and plumbing applications.
Benefits:
High durability
Chemical resistance
Safe for potable water
3.4 HDPE Pipes
High-Density Polyethylene (HDPE) pipes are flexible and highly durable. They are commonly used in underground water supply and industrial applications.
Key features:
Flexibility
Crack resistance
Long lifespan
High impact strength
4. Types of Pipes Based on Structure
4.1 Solid Wall Pipes
These pipes have a uniform wall thickness throughout. They are used in both pressure and non-pressure applications depending on material and rating.
4.2 Structured Wall Pipes
Structured wall pipes have specially designed layers to provide strength while reducing weight.
Advantages:
Lightweight
Cost-effective
High stiffness-to-weight ratio
5. Types of Pipes Based on Stiffness
Pipe stiffness determines the ability of a pipe to resist deformation under external loads.
5.1 High Stiffness Pipes
Used in underground installations where heavy soil loads or traffic loads are present. These pipes maintain shape under pressure.
5.2 Medium Stiffness Pipes
Suitable for standard residential and commercial drainage systems with moderate load conditions.
5.3 Low Stiffness Pipes
Used in low-load environments where minimal external pressure exists.
How to Choose the Right Type of Pipe?
Selecting the correct pipe depends on several factors:
Type of fluid (water, chemicals, air)
Pressure requirement
Temperature conditions
Installation environment (underground or exposed)
Budget considerations
Expected lifespan
Consulting a reliable manufacturer ensures you receive certified and high-quality piping solutions.
Importance of Quality Pipes in Infrastructure
Investing in high-quality pipes reduces maintenance costs, prevents leakages, ensures safety, and increases system efficiency. Poor pipe selection can lead to:
Water contamination
Structural damage
Industrial downtime
Increased repair expenses
Modern piping systems are designed for sustainability, efficiency, and durability.
Why Choosing the Right Pipe Supplier Matters
A trusted pipe manufacturer ensures:
Strict quality control
Compliance with industry standards
Wide product range
Reliable after-sales support
Whether you need pipes for water supply, drainage, chemical transport, or pneumatic systems, choosing the right supplier guarantees long-term reliability.
Conclusion
Understanding the different types of pipes based on application, material, pressure capacity, structure, and stiffness helps in selecting the right piping system for residential, commercial, and industrial projects. From water supply and drainage to chemical and pneumatic systems, every application demands specific pipe characteristics.
Choosing high-quality pipes ensures durability, safety, and long-term performance.
Looking for reliable and premium piping solutions? Visit ajaypipes.com today to explore a wide range of high-performance pipes designed for every application. Build stronger. Build smarter. Choose quality with Ajay Pipes.
Frequently Asked Questions (FAQs)
1. What are the main types of pipes used in water supply systems?
Water supply systems commonly use PVC, CPVC, uPVC, and HDPE pipes due to their corrosion resistance, durability, and smooth internal surfaces for efficient flow.
2. What is the difference between pressure and non-pressure pipes?
Pressure pipes are designed to withstand internal fluid pressure, while non-pressure pipes are used in gravity-based systems like drainage and sewage.
3. Which pipe material is best for chemical applications?
CPVC, HDPE, and specially designed industrial-grade pipes are ideal for chemical applications due to their high resistance to corrosion and chemicals.
4. How does pipe stiffness affect performance?
Pipe stiffness determines how well a pipe resists external loads. Higher stiffness pipes are better suited for underground installations with heavy loads.
5. Are PVC pipes suitable for hot water supply?
Standard PVC pipes are not ideal for hot water. CPVC pipes are recommended for hot and cold water applications due to their higher temperature resistance.
