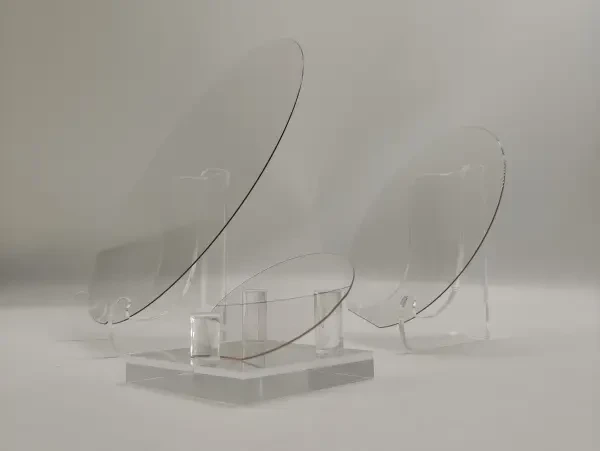

Silicon Carbide ($\text{SiC}$) is the defining material of the modern power industry, particularly within electric vehicles ($\text{EVs}$). It is what enables faster charging, longer battery range, and smaller power systems.
Now, the global semiconductor industry is moving toward a new, radical standard: $\text{SiC}$ wafers just $200\mu\text{m}$ thick. To put that in perspective, this is barely thicker than two human hairs, or half the width of a standard credit card.
Why this extreme slimming trend? Because when it comes to power chips, thinner directly translates to higher performance—but it also presents some of the biggest manufacturing challenges the industry has ever faced.
The Massive Performance Gains of Going Ultra-Thin
Shrinking the substrate to $200\mu\text{m}$ isn't about saving space; it's about fundamentally improving the physics of the chip. This small reduction in thickness unlocks two massive advantages for power devices.
1. Lower Conduction Losses
In a $\text{SiC}$ power chip (like a $\text{MOSFET}$), electric current travels vertically through the entire wafer. This path, despite the material's excellent conductivity, still causes resistance, known as On-Resistance ($\text{Rds(on)}$).
- The Opportunity: A thinner $200\mu\text{m}$ wafer gives the current a shorter, less resistive path to travel. By reducing the $\text{Rds(on)}$, the chip wastes significantly less energy as heat. For an $\text{EV}$, this means a noticeable boost in efficiency, allowing more battery power to go to the wheels, not to waste.
2. Superior Thermal Management
Operating at high power generates intense heat, and a chip's ability to shed this heat is its ultimate speed limit. While $\text{SiC}$ is naturally very heat-conductive, the substrate itself is still a thermal barrier.
- The Opportunity: By making the barrier thinner, heat escapes from the active device layers to the cooling system faster and more effectively. This allows the power device to run at higher power levels without risking burnout. Better thermal management is crucial for the dense power modules found in fast-charging stations and high-performance $\text{EVs}$.
The Double-Edged Sword: Manufacturing Challenges
The benefits are clear, but the path to mass-producing ultra-thin $\text{SiC}$ is a technological minefield. Silicon Carbide is renowned for its hardness and brittleness, properties that make thinning highly complex.
The Mechanical Integrity Crisis
Reducing a wafer's thickness is a mechanical grinding process. When a large 6-inch or 8-inch $\text{SiC}$ wafer is ground down to $200\mu\text{m}$, its fragility increases dramatically.
- Handling Risk: The wafers become sensitive to even minor mechanical stress. They are highly susceptible to cracking, chipping, and breaking during automated transfer between different processing machines in the fabrication plant.
- Warpage and Uniformity: Maintaining a perfectly flat, uniform thickness across a large, thin surface is incredibly difficult. Even a slight bend, or "warpage," can ruin the sensitive device layers built on the surface, leading to catastrophic yield losses.
The Processing Hurdles
Achieving the $200\mu\text{m}$ standard requires pushing current technology to its limit:
- Back-Side Grinding: This process must be performed with sub-micron precision to achieve the target thickness without creating microscopic damage beneath the surface.
- Wafer Bonding: For the thinnest wafers, specialized temporary bonding and de-bonding techniques are often needed to provide mechanical support during the most difficult steps.
The Future is Thin
The adoption of $200\mu\text{m}$ $\text{SiC}$ wafers is a critical leap forward. It’s a necessary step to meet the increasing power demands of electric vehicles, renewable energy systems (like solar inverters), and industrial power supplies. The companies that successfully master the complexity of ultra-thin $\text{SiC}$ production will be the ones leading the charge in the next era of power electronics.
