Single Girder Vs. Double Girder Crane

When it comes to choosing a crane for your industrial project, there are certain features and functionalities that you must consider. The two main options when selecting a bridge-type crane are single-girder and double-girder cranes. Depending on the specific requirements of your application, one option may be more suitable than the other. In this blog post, we will look at the implications of each design in further detail and review key considerations before making your final decision about which is best for you.

What is a Single Girder Crane?

A single girder crane is an overhead crane with a hoist mounted on one beam. This design makes it capable of lifting and moving heavy loads indoors and outdoors. It can be used for manufacturing, material handling, construction, and other industrial applications. Single-girder cranes are cost-effective as they require less maintenance than double or multi-girder cranes. They are also often simpler to install and operate than overhead cranes. With their compact size and versatility, single girder cranes are well suited for lifting operations where space is limited or frequent repositioning is required.

The crane’s load capacity depends on its design parameters, such as span length, lift height, power source, and wheel diameter. Single girder cranes are typically rated up to 10 tons but can be designed for higher capacities. Jib Cranes Manufacturers in India offer superior quality cranes at competitive prices, making them a popular choice for many industrial and commercial applications.

Benefits of Double Girder Cranes

Single girder cranes offer a simple, reliable, and versatile solution for many applications. Here are five benefits of using single girder cranes in your facility:

Cost Savings – Single Girder Cranes are generally less expensive than double girder cranes due to the simpler design. This makes them an attractive option when working within tight budget constraints.
Maintenance – Single Girder Cranes require less maintenance than double girder cranes because they have fewer moving parts; this leads to reduced downtime and lower operating costs over time.
Ease of Installment – Single Girder Cranes can be installed quickly and easily due to their simplistic design, which usually requires minimal modifications or alterations to existing structures. This can significantly reduce installation times and labor costs.
Flexibility – Single Girder Cranes are highly flexible, allowing easy customization to meet specific needs or applications. They can be outfitted with hoist sizes, trolley configurations, and other accessories to provide maximum functionality and efficiency in any given environment.
Safety – Single Girder Cranes are designed to provide safe operation with fewer components than double girder cranes, which reduces the risk of malfunction or failure due to overloading or other causes. Additionally, single-girder cranes can utilize emergency stop systems and dynamic braking for added safety measures in high-risk situations.

Overall, single-girder cranes offer several advantages over double-girder cranes, making them an excellent choice for many applications. Their cost savings, low maintenance requirements, easy installment, and flexible design make them ideal for businesses looking to maximize efficiency and safety in their operations.

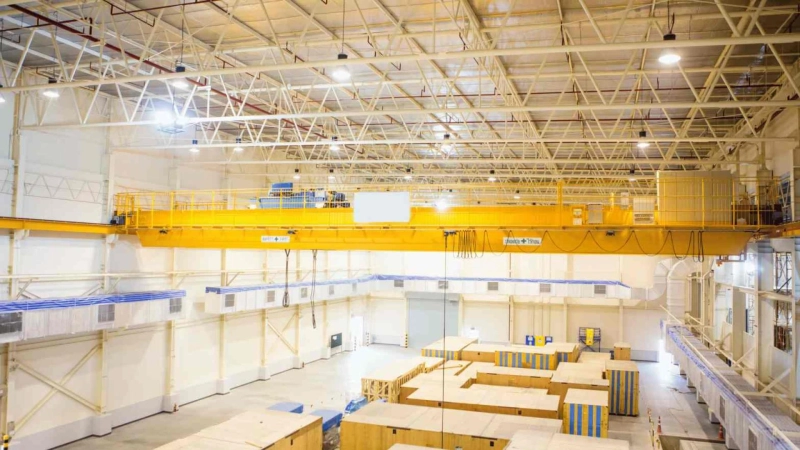

What is a Double Girder Crane?

A Double Girder Crane is a bridge crane used for heavy lifting in industrial environments. It is composed of two parallel bridges that span the runway length and support the hoist trolley and all other crane components. The two girders are connected by transverse members that provide rigidity and stability to the entire crane system, allowing it to handle heavier loads than single girder cranes with the same capacity. In addition, double-girder cranes can move over longer spans than single-girder cranes due to their increased rigidity. Double Girder Cranes offer many advantages, such as improved safety features, higher load capacities, and increased efficiency compared to single girder cranes.

They are ideal for use in warehouses, factories, and manufacturing plants where heavy loads are moved regularly. With the right crane design and appropriate maintenance, a Double Girder Crane can provide reliable performance for many years.

Single girder vs. Double girder crane

Single girder cranes, also known as Monorails, are designed to carry a single beam with one or two end carriages, while double girder cranes feature two beams and utilize two end truck assemblies. This basic structural difference provides the foundation for five key differences between the two types of industrial cranes:

Capacity: Single girder cranes tend to have lower maximum capacities than double girder cranes — usually less than 20 tons — while double girders can be used for heavier loads up to several hundred tons.
Height: The height available beneath the hoist is generally limited in a single girder crane since only one beam needs to clear this space; however, because of the two beams in a double girder system, height is not an issue.
Span: The span, or distance the crane can travel, is limited by the length of the beam in single girder cranes; therefore, their spans tend to be shorter than those of double girder cranes, have a larger beam capacity, and longer reach.
Maintenance: Single girder cranes require less maintenance because they are simpler mechanically than double girders and do not require lubrication as often due to fewer moving parts.
Cost: Generally speaking, single-girder overhead bridge cranes cost less up-front than double girders due to their simplified design and smaller capacity requirements.

Depending on the application and environment, either type of overhead bridge crane could be suitable — it just depends on your specific needs. Understanding the five key differences between single and double-girder cranes allows you to decide what kind best suits your project.

Single Girder Or Double Girder Crane — How To Choose

Capacity needs: Single girder cranes are the best choice if you need a crane for a small job. They are designed to handle lighter loads and have a smaller overall footprint. However, double-girder cranes may be more suitable if you need a crane for a large project, such as lifting heavy materials or transporting larger payloads.
Application and environment: Before selecting any crane, it is important to consider the application and environment where it will be used. Single girder cranes can be used in indoor and outdoor applications, whereas double girder cranes are often better suited for indoor operations with limited space. The design of the hoist, trolley, and structural support system should also be considered.
Cost: Single girder cranes are typically more cost-effective than double girder cranes due to their simpler construction and design. However, when the capacity requirements of your application increase, a double girder crane may provide greater value in terms of efficiency and safety.
Maintenance: Double girder cranes require more maintenance than single girder cranes as they have more complex components that must be regularly inspected and serviced. On the other hand, single girder cranes are easier to maintain as they have fewer moving parts which can reduce operational costs in the long run.
Safety: Both types of cranes offer excellent safety features, but double-girder cranes are generally considered the safest option. This is due to their additional structural support and greater lifting capacity, which can reduce the risk of accidents caused by overloading or unstable loads.

In conclusion, single-girder cranes offer a cost-effective solution for lighter-load applications, while double-girder cranes provide increased safety features and are better suited for heavier-duty operations. While both types of cranes have advantages, it is important to consider your specific application needs before deciding to ensure that you select the most appropriate crane for your requirements.
