Fluid couplings are essential components in mechanical power transmission systems, offering smooth torque transmission, protection against overload, and shock absorption. Unlike rigid mechanical couplings, fluid couplings use hydraulic principles to transmit power, making them highly effective in applications requiring controlled acceleration, reduced vibration, and extended equipment lifespan.
In today’s industrial landscape—where uptime, efficiency, and durability are critical—fluid couplings provide an advanced solution for machines operating under variable loads and harsh conditions. One of the most trusted manufacturers in this domain is Rathi Couplings, known for its high-performance fluid coupling solutions built to meet the demands of modern industries.
What Are Fluid Couplings?

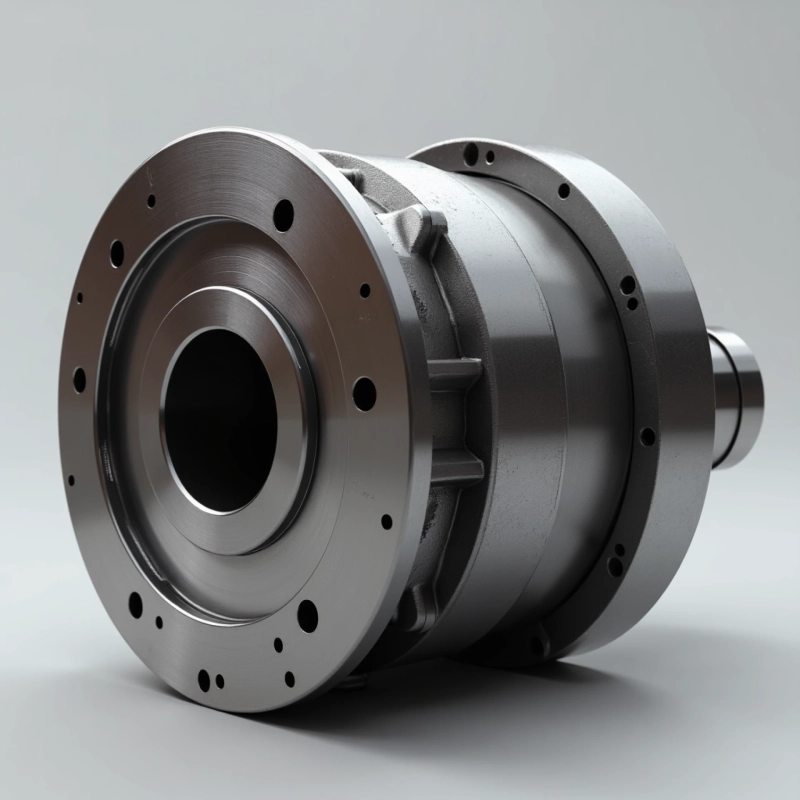

Fluid couplings are hydrodynamic devices used to connect a driving shaft (like a motor) to a driven shaft (like a pump or conveyor). They transfer torque using a hydraulic fluid, typically oil, rather than through direct mechanical contact. The key components of a fluid coupling include:
- Impeller (Pump): Connected to the input shaft and rotates with the driving force.
- Turbine (Runner): Connected to the output shaft and receives torque from the fluid.
- Housing (Shell): Encases the fluid and internal components.
- Working Fluid: Usually oil that transmits energy via motion and pressure.
By using fluid dynamics, fluid couplings offer a cushioned and flexible method of power transfer, making them ideal for systems that require gradual startup, vibration damping, and overload protection.
How Do Fluid Couplings Work?
When the motor shaft rotates the impeller, it sets the fluid inside the coupling in motion. This circulating fluid creates a torque that turns the turbine connected to the output shaft. The more fluid energy transmitted, the faster the turbine rotates. However, since there’s no direct connection between the shafts, the coupling allows for slippage—especially during startup or load variations—which helps reduce mechanical stress.
Rathi Couplings engineers its fluid couplings with advanced hydrodynamic designs that ensure high torque transmission efficiency and stable performance under varying load conditions.
Benefits of Fluid Couplings
The popularity of fluid couplings stems from their numerous advantages over conventional couplings, especially in demanding environments:
1. Soft Start Capability
Fluid couplings eliminate the mechanical shock associated with direct starts. They allow machinery to ramp up gradually, reducing the risk of damage to gears, belts, and motors.
2. Overload Protection
In case of sudden load changes or jamming, fluid couplings slip to absorb the shock and protect the drivetrain.
3. Vibration and Shock Absorption
The hydraulic operation dampens torsional vibration and mechanical oscillations, ensuring smoother operation.
4. Maintenance Friendly
With fewer mechanical parts in contact, wear and tear are minimized. This leads to lower maintenance costs and longer coupling life.
5. Energy Efficiency
Modern fluid couplings by Rathi Couplings are designed to minimize slip losses, improving the energy efficiency of the entire system.
Applications of Fluid Couplings
Fluid couplings are widely used across various industries where torque control and smooth power transmission are essential. Typical applications include:
- Mining: Conveyors, crushers, hoists
- Cement Plants: Rotary kilns, ball mills, fans
- Steel Plants: Rolling mills, shears, cooling towers
- Power Generation: Boiler feed pumps, ID/FD fans
- Sugar & Paper Industry: Centrifuges, refiners
- Marine Industry: Propulsion systems, winches
In all these applications, Rathi Couplings provides fluid couplings tailored to the specific operational demands, ensuring safety, durability, and optimal performance.
Types of Fluid Couplings
Rathi Couplings offers a variety of fluid coupling types designed to suit different industrial needs:
1. Constant Fill Fluid Couplings
These couplings have a fixed amount of fluid. They are simple in design and commonly used in conveyor drives and crushers.
2. Variable Fill Fluid Couplings
Equipped with a filling regulation mechanism (such as a scoop tube), these couplings allow adjustment of fluid level during operation. This makes them suitable for applications with frequent speed and load variations.
3. Scoop Control Couplings
A specific type of variable fill coupling used in high-power drives. The scoop tube controls torque and power transmission dynamically.
All types from Rathi Couplings are manufactured with precision, ensuring optimal efficiency, low slip loss, and high thermal capacity.
Why Choose Rathi Couplings?
When it comes to fluid couplings, reliability and engineering precision are vital. Rathi Couplings has been a trusted name in power transmission for over four decades, delivering excellence across industries.
Key Benefits of Choosing Rathi Couplings:
- ISO-Certified Manufacturing: Global quality standards for design, production, and testing.
- Advanced Technology: State-of-the-art machinery and engineering design software.
- Custom Solutions: Fluid couplings tailored to client-specific requirements.
- After-Sales Support: Timely assistance, technical support, and spare parts availability.
- Global Presence: Trusted by clients across India, Asia, Africa, and Europe.
Whether you're looking for high-performance fluid couplings for mining, power, or heavy industrial applications, Rathi Couplings delivers products that perform consistently under pressure.
Selecting the Right Fluid Coupling
Choosing the right fluid coupling is crucial for operational efficiency and safety. Consider the following when making a selection:
- Motor Power & Speed
- Starting Torque Requirements
- Application Load Type
- Misalignment Compensation
- Mounting Orientation
- Operating Environment (temperature, dust, moisture)
Rathi Couplings offers expert engineering support to help customers select the optimal fluid coupling solution for their specific application.
Maintenance Tips for Fluid Couplings
Though fluid couplings are low-maintenance by design, regular inspection ensures optimal performance and longevity:
- Check Fluid Levels Regularly: Top up with recommended fluid as needed.
- Inspect Seals and Housings: Look for wear, leaks, or cracks.
- Monitor Operating Temperature: Overheating can indicate overloading or insufficient lubrication.
- Clean Air Vents: Blocked vents can reduce thermal efficiency.
- Realign Shafts if Necessary: Ensure correct alignment to avoid unnecessary stress on bearings.
Following these maintenance best practices ensures long service life and maximum performance from your Rathi Couplings fluid coupling.
Future of Fluid Couplings in Industry
As industries become more automated and efficiency-focused, fluid couplings are evolving too. Future developments include:
- Smart Couplings with Sensors
- IoT-Enabled Condition Monitoring
- High-Performance Materials
- Lighter, More Compact Designs
- Zero-Maintenance Sealing Systems
Rathi Couplings continues to invest in research and development to bring these innovations into real-world industrial applications, ensuring your operations remain future-ready.
Conclusion
Fluid couplings are indispensable in modern industry, offering controlled torque transmission, protection from overload, and improved machinery lifespan. Their hydrodynamic operation makes them ideal for demanding applications across mining, steel, cement, and energy sectors.
For businesses seeking performance, reliability, and engineering excellence, Rathi Couplings provides world-class fluid coupling solutions tailored to your needs. With a commitment to quality and innovation, Rathi Couplings remains a top choice for industries across the globe.
