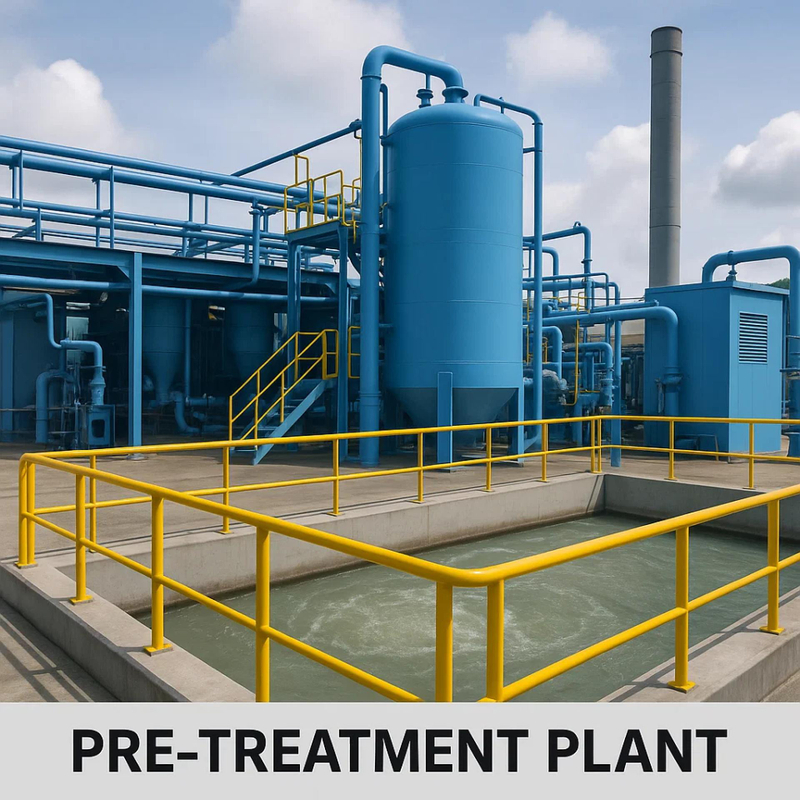

Pre-Treatment Plant

A Pre-Treatment Plant (PTP) is an integral part of any industrial process where a final coating, painting, plating, or any protective process is to be applied to a surface or raw material. It's a system that thoroughly cleans and prepares the material before these final processes. The main purpose of a PTP is to remove all contaminants such as oil, grease, dust, rust, and scale from the material's surface, ensuring that the subsequent coating adheres well and becomes more durable. It's more than just cleaning; it's a scientific process that ensures product quality and longevity.

Necessity and Importance of PTP

Imagine you want to paint a wall that's already covered in dust, dirt, and old, peeling paint. If you paint directly without cleaning it, the new paint will hardly stick and will soon peel off. The same principle applies in industrial settings, but on a much larger scale and with more complex contaminants.

The importance of PTP stems from several reasons:

• Improved Adhesion: The presence of oil, grease, or dust on the surface prevents the coating from adhering properly. PTP removes these barriers, providing a clean and reactive surface that maximizes coating adhesion.
• Enhanced Corrosion Resistance: Removing contaminants like rust and scale provides better protection against corrosion beneath metallic coatings or paint. PTP processes often involve chemicals that create a passive layer on the surface, further reducing the likelihood of rust.
• Longevity and Durability: A coating applied to a well-prepared surface lasts longer and withstands wear better, increasing the overall longevity of the product.
• Improved Quality: A coating applied to a clean surface appears more uniform and aesthetically pleasing, improving the overall quality and market value of the finished product.
• Cost-Effectiveness: Although PTP involves initial investment and operational costs, it helps prevent expensive reworks, warranty claims, and product failures due to poor-quality coatings. In the long run, it provides significant savings.

Main Stages of Pre-Treatment Plant

A typical Pretreatment Plant (PTP) process includes multiple stages—each designed to clean, protect, and prepare surfaces for durable, high-quality coatings.

1. Degreasing

This is the first and most crucial step. Its aim is to remove oils, greases, waxes, and other organic contaminants from the surface. This is typically done using chemical degreasers, which can be applied via spray or immersion. Alkaline degreasers are the most common, emulsifying or saponifying oils and greases when combined with hot water.

2. Rinsing (Water Rinse)

After degreasing, the surface is thoroughly rinsed with clean water. This is vital to remove any degreaser residue that could interfere with the next stage. Insufficient rinsing can lead to stains or poor adhesion.

3. Descaling / Derusting

If rust or mill scale is present on the material, this stage removes them. This is typically done using acidic solutions, such as hydrochloric acid or sulfuric acid. The acid dissolves these oxidized layers. This process is also known as 'pickling'.

4. Rinsing (Water Rinse)

After descaling, thorough rinsing with water is again essential to remove acid residues. If acid remains on the surface, it can negatively impact subsequent coatings and cause corrosion.

5. Surface Conditioning

This step is included in some PTP processes, especially when phosphating or chromium-free coatings are used. Surface conditioners, often titanium salts, create microscopic nucleation sites on the surface. These sites promote the formation of a uniform and fine crystalline structure for the subsequent chemical conversion coating, improving adhesion and corrosion resistance.

6. Drying

After all wet stages, the surface is dried. This is typically done using hot air ovens or infrared heaters. It's crucial to ensure no moisture remains on the surface, as moisture can negatively impact the adhesion and performance of the subsequent coating.

Types of Pre-Treatment Plant

PTP systems are primarily of two types: Dip-Type, ideal for complex or heavy parts with low investment, and Spray-Type, perfect for automated, high-volume, and consistent production.

1. Spray PTP System

In this system, chemicals and water are sprayed onto the material at high pressure through spray nozzles. This is commonly used with automated conveyor systems where the product moves through various stages at a set speed. It's fast and efficient, especially for mass production.

2. Dip / Immersion PTP System

In this system, the material is immersed in various chemical tanks, each containing a specific treatment. This is more suitable for parts with complex shapes, as chemicals can reach all surfaces. However, it can be more time-consuming than spray systems.

Conclusion

The Pre-Treatment Plant is the backbone of modern manufacturing, ensuring that metals and other materials perform to their maximum potential. It's not just cleaning, but a meticulous scientific process that enhances adhesion, corrosion resistance, and overall product longevity. As industries move towards more sustainable and efficient processes, PTP technologies will continue to evolve, balancing superior product quality with environmental responsibility. Without an effective PTP, any coating or painting job would be incomplete and unstable, affecting product reliability and market value.
