INTRODUCTION:

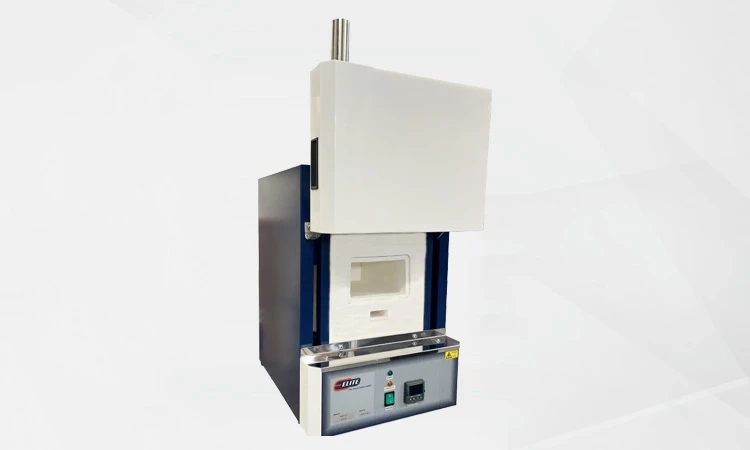

What Is a Muffle Furnace?

A muffle furnace is a high-temperature heating device widely used in laboratories, industries, research institutes, and material testing facilities. Traditionally, the term referred to a furnace containing a ceramic muffle—a hollow chamber that separated the sample from direct contact with the heating source. The ceramic muffle acted as a barrier, ensuring uniform heating while preventing contamination from combustion gases or heating coils.

In earlier designs, the outer chamber was insulated, and heating elements surrounded the muffle. The furnace door provided safe access to the heated interior, enabling controlled thermal processing. Although these furnaces were originally heated by coal or gas, modern versions operate predominantly on electricity because it offers cleaner, more consistent, and precisely controllable heating.

Today, the term “muffle furnace” is used more broadly. In modern industry, it typically refers to any rectangular or box-type furnace (with or without a ceramic muffle) that operates in the temperature range of 600°C to 1800°C. These are also commonly called:

• Chamber Furnaces
• Box Furnaces
• Lab Furnaces

Whether in academic laboratories, quality control departments, metallurgy labs, or large industrial plants, muffle furnaces serve as essential equipment for highly controlled, repeatable heating processes.

How Does a Muffle Furnace Work?

A muffle furnace operates on a simple yet effective principle: convert electrical energy into heat, distribute it uniformly inside an insulated chamber, and maintain precise temperature control for a desired duration.

Key Functional Components

1. Heating Elements
2. Made from Kanthal, silicon carbide (SiC), or molybdenum disilicide (MoSi₂). These elements generate heat rapidly and withstand extremely high temperatures.
3. Insulated Chamber
4. Constructed using ceramic fiber, firebrick, or refractory insulation to minimize heat loss and maximize energy efficiency.
5. Ceramic Muffle (traditional design)
6. Separates heating coils from the sample to ensure contamination-free heating.
7. Temperature Controller
8. Modern furnaces use digital PID controllers or PLC-based systems for precise temperature settings, ramp rates, and cycle programming.
9. Thermocouple Sensor
10. Continuously monitors chamber temperature and feeds data to the controller.
11. Safety Mechanisms
12. Includes over-temperature protection, door interlocks, emergency shutdown features, and certified electrical systems.

Applications of Muffle Furnaces

Muffle furnaces are versatile tools used across numerous scientific, industrial, and educational domains. Below are the major applications where these furnaces play a critical role.

1. Heat Treatment Processes

Heat treatment involves controlled heating and cooling of materials—typically metals—to alter their physical and mechanical properties.

Common heat treatment applications include:

• Annealing – Softening metals by relieving internal stresses.
• Tempering – Increasing toughness after hardening.
• Stress Relieving – Reducing residual stresses from machining or welding.
• Hardening – Improving surface hardness and wear resistance.

Industries: manufacturing, automotive, casting, aerospace, and tool-making.

2. Sintering & Calcination

Sintering and calcination involve high-temperature processing of powders, minerals, and ceramics.

Applications include:

• Ceramics production
• Catalyst preparation
• Metal powder sintering
• Ore processing and thermal decomposition

These processes require excellent thermal uniformity, repeatability, and stability—qualities for which muffle furnaces are ideal.

3. Material Testing & Quality Control

Muffle furnaces play a critical role in analyzing material properties in laboratories.

Examples include:

• Failure analysis
• Thermal gravimetric tests
• Ash content determination
• Loss on Ignition (LOI) studies
• High-temperature endurance tests

They are used in industries such as steel, coal, cement, chemicals, and polymers.

4. Sample Preparation

Before chemical testing, many samples require ashing or organic removal. Muffle furnaces provide contamination-free, stable, and repeatable heat treatment for preparation steps such as:

• Ashing of food, coal, plastics, rubber, and biomass
• Organic matter removal before elemental analysis
• Crucible heating and sterilization

5. Research & Education

Universities, R&D centers, and government labs rely on muffle furnaces for controlled thermal experiments, such as:

• Thermal behavior of materials
• Phase transformation studies
• Chemical reaction research
• Pyrolysis and oxidation studies

Their precise temperature control and programmable heating cycles make them ideal for academic experiments.

Key Specifications to Consider When Choosing a Muffle Furnace

Selecting the right furnace is essential for achieving accurate and reliable results. Here are the primary specifications to evaluate:

1. Maximum Temperature

Muffle furnace temperature ranges generally fall between:

• 600°C – 1200°C for common laboratory applications
• 1400°C – 1600°C for ceramic and metallurgical processes
• 1800°C for advanced materials like ceramics, carbides, and sintered metals

Choose a furnace whose maximum temperature exceeds your typical working temperature for longer durability.

2. Chamber Size & Load Capacity

Internal volume determines the sample size or quantity you can process. Typical chamber options range from small 1-liter furnaces to large industrial 200-liter models.

3. Heating Rate & Energy Efficiency

Rapid heating furnaces can reach target temperatures faster, improving productivity. Advanced insulation reduces energy consumption and heat loss.

4. Digital Controls & Programmability

Look for:

• PID controllers
• Programmable temperature cycles
• Multi-stage ramps and soaks
• Data logging options
• PLC/HMI interfaces

These features enhance accuracy and ease of use.

5. Atmosphere Compatibility

Certain materials require specific atmospheric conditions.

Options include:

• Air (standard)
• Vacuum
• Inert gas (Argon, Nitrogen)
• Controlled oxygen environments

Atmosphere compatibility is vital for sensitive samples and oxidation-prone materials.

6. Safety Features & Certifications

Safety is critical in any high-temperature equipment. Ensure the furnace includes:

• Over-temperature protection
• Door interlocks
• Robust thermal insulation
• ISO / CE compliance
• Safe electrical configurations
• Emergency shutdown systems

Types of Muffle Furnaces Offered by Sylab Scientific

Sylab Scientific provides a wide range of muffle and chamber furnaces engineered for precision, efficiency, and durability. Below are the major categories:

1. Laboratory Chamber Furnaces

• Compact, economical, and perfect for R&D and routine testing
• Ideal for schools, universities, and small laboratories
• Provide excellent temperature uniformity

2. Top-Loading Furnaces

• Samples are loaded from the top
• Enables uniform heating from all sides
• Suitable for heavy or bulky samples

Commonly used in metallurgy and ceramic processing.

3. Rapid Heating Furnaces

• Designed for fast temperature ramp-up
• Reduces overall testing time
• Ideal for high-throughput labs and industrial workflows

4. Elevator Hearth Furnaces

• Platform moves vertically for ergonomic loading
• Safer for operators handling heavy or large materials
• Excellent temperature uniformity

5. Vacuum Furnaces

• Oxygen-free environment
• Prevents oxidation
• Essential for advanced metallurgy, ceramics, and sensitive materials

Why Choose Sylab Scientific?

Sylab Scientific stands out as a trusted manufacturer of high-performance laboratory and industrial furnaces. Our commitment to quality and innovation ensures reliable and accurate results across all applications.

1. Precision Temperature Control

Equipped with advanced PID digital controllers, our furnaces deliver highly stable temperatures with minimal fluctuation. This ensures predictable, repeatable results—crucial in research and industrial settings.

2. Energy Efficiency

We use high-quality insulation materials and fast-response heating elements. These reduce heat loss, improve heating rates, and lower energy consumption, making our furnaces cost-effective over long-term use.

3. Industry-Leading Safety Standards

Safety is at the core of our design philosophy. Our furnaces include:

• Over-temperature protection
• Door interlocks
• Emergency shutdown features
• Robust construction
• Certified electrical components (ISO, CE compliance)

4. Customizable Configurations

We understand that every laboratory and industrial operation has unique needs. That's why we offer:

• Custom chamber dimensions
• Specific temperature ranges
• Special atmosphere chambers
• Tailored control systems
• Special-purpose furnace designs

5. Complete Support & Service

Our relationship doesn’t end at the sale. We provide:

• Quick delivery
• Installation assistance
• Application consultations
• Dependable after-sales support
• Spare parts availability

Sylab Scientific ensures your equipment performs consistently and reliably throughout its lifecycle.

Conclusion

Muffle furnaces are indispensable tools for laboratories, industries, research centers, and educational institutions. Whether it's heat treatment, ash analysis, sintering, quality testing, or sample preparation, muffle furnaces deliver accurate and controlled thermal processing.

With a thorough understanding of their design, applications, and specifications, you can choose the right furnace for your needs. Sylab Scientific’s wide range of furnaces—supported by advanced technology, precision engineering, and strong customer service—ensures optimal performance for every application.

Whether you require a compact lab furnace or a customized industrial system, Sylab Scientific provides reliable, efficient, and high-quality solutions to match your workflow and budget.
