Butterfly Valve Relevant Working Conditions and Mediums

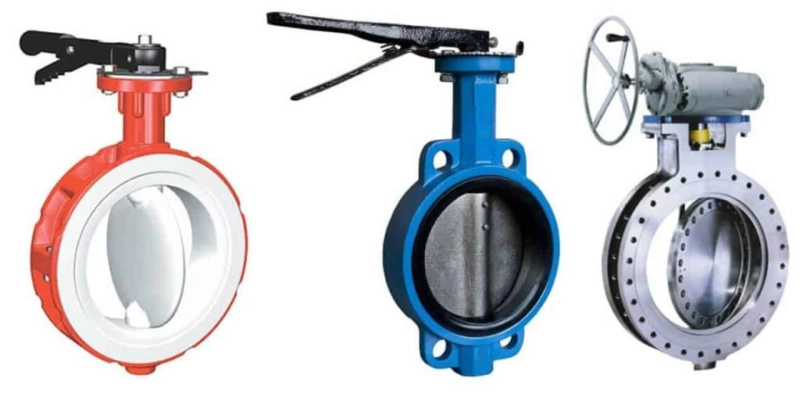

There are lots of kinds of butterfly valves, including quick cut-off and continuous adjustment, COVNA manufactures pneumatic butterfly valves, electric butterfly valves. Mainly employed for liquid and gas low pressure large diameter pipelines. It’s appropriate for occasions in which the pressure loss isn’t high, flow adjustment is needed, and also the frequent lowering and raising needs are fast normally the temperatures are below 300 ? and also the pressure is below 40 kg (butterfly valves generally use low pressure, like domestic ones. It’s rare to attain CL600). The medium is usually employed for water and gas, and also the medium isn’t demanding. Granular medium may also be used.
Like a sealed butterfly valve, it introduced rapid development following the emergence of synthetic rubber, so it’s a brand new kind of shut-off valve. Within our country-China before the 1980s, butterfly valves were mainly employed for low-pressure valves, and also the valve seat is made of synthetic rubber. Through the 1990s, because of elevated exchanges with foreign countries, hard-seal (metal-seal) butterfly valves developed quickly. At the moment, there are lots of valve factories that may produce medium-pressure metal-sealed What is Butterfly Valve stably, making the applying field of butterfly valves wider.
The press the butterfly valve can hold and control are water, condensate, circulating water, sewage, ocean water, air, gas, liquid gas, dry powder, dirt, fruit pulp and mixtures with suspended solids.
Butterfly valves are appropriate for flow regulation. Because the pressure lack of the butterfly valve within the pipeline is comparatively large, around three occasions those of the gate valve, when choosing the butterfly valve, the influence from the pressure lack of the pipeline system ought to be fully considered, and the effectiveness of the butterfly plate to resist pressure from the pipeline medium ought to be considered. Additionally, it’s important to think about the limitation from the working temperature from the elastic valve seat material at hot temperature.
The structural length and overall height from the butterfly valve are small, the frequent lowering and raising speed is fast, and contains good fluid control characteristics. The structural principle from the butterfly valve is most appropriate to make large-diameter valves. Once the butterfly valve is needed to manage the flow, the most crucial factor would be to properly choose the type and size from the butterfly valve in order that it could work correctly and effectively.
Generally, in throttling, controlling control and dirt medium, the dwelling length is brief and also the frequent lowering and raising speed is fast (1/4 revolution). Low pressure cut-off (small pressure difference), butterfly valve is suggested.
The butterfly valve may be used when two-position adjustment, narrow passage, low noise, cavitation and vaporization phenomenon, a tiny bit of leakage in to the atmosphere, and abrasive media.
Once the butterfly valve can be used under special conditions, for example throttling adjustment, or strict sealing needs, or severe put on, cold (cryogenic) along with other operating conditions, it’s important to utilize a specifically designed metal seal having a triple eccentric or double eccentric adjustment device Special butterfly valve for ground.
The centerline butterfly valve is appropriate for freshwater, sewage, ocean water, brine, steam, gas, food, medicine, and oil that need complete sealing, zero gas test leakage, high existence needs, and dealing temperature of -10?~150? As well as other acidity and alkali along with other pipelines.
The soft-sealed eccentric butterfly valve is appropriate for 2-way frequent lowering and raising and adjustment of ventilation and dirt removal pipelines. It’s broadly utilized in gas pipelines and waterways in metallurgy, light industry, electrical power, and petrochemical systems.
